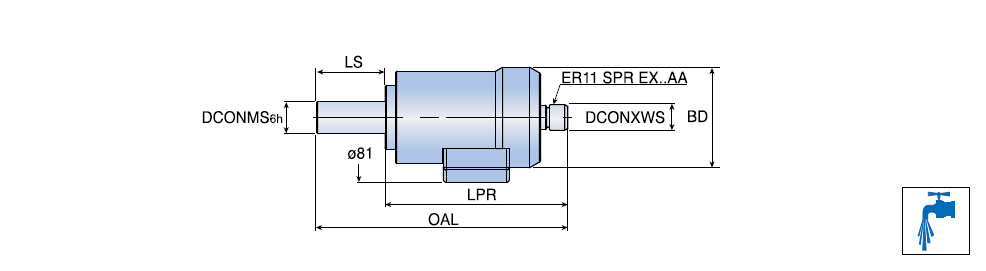

TJS-GJET-ST : Coolant driven high-speed compact spindles with cylindrical shanks

For ER-SPR collets use "AA" type only

Designation	DCONMS	LPR	OAL	LS	DCONXWS	BD		S3	ClssID	LTA	GICAT	GIREM	giic	GICODE
TJS GJET ST20	20.00	115.00	158.00	43.0	7.00	63.00	1.20	ER11 ~	71EAD3871D313 ~	107.94~	6321042		0

Minimum coolant pressure 20 bar and flow rate 12 l/min
The spindle provides only external strong coolant jet around the tool
