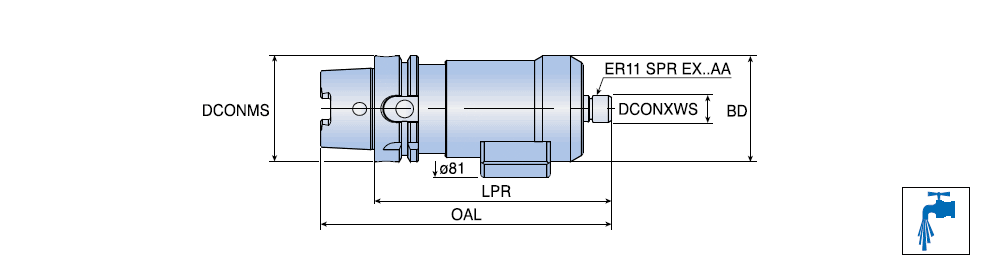

TJS-GJET-HSK A63 : Coolant driven high-speed compact spindles with HSK shanks

For ER-SPR collets use "AA" type only

Designation	DCONMS	LPR	OAL	BD	DCONXWS		S3	ClssID	LTA	GICAT	GIREM	giic	GICODE
TJS GJET HSK A63	63.00	141.00	173.00	63.00	7.00	1.80	ER11 ~	71EAD3871D313 ~	134.40~	6321041		0

Minimum coolant pressure 20 bar and flow rate 12 l/min
The spindle provides only external strong coolant jet around the tool
