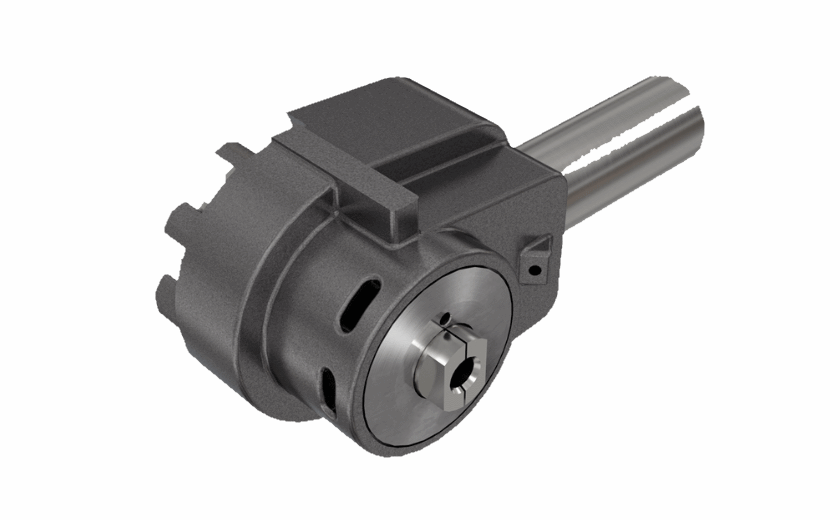

TJS M90 : Coolant driven high-speed compact angular head spindle

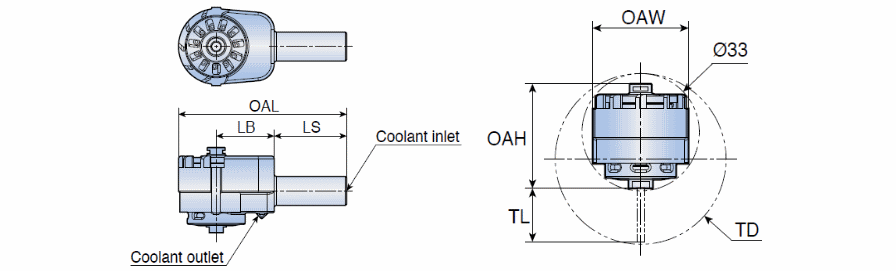

Designation	DCONMS	LS	LB	OAL	OAH	OAW	S3	ClssID	LTA	GICAT	GIREM	giic	GICODE
TJS M90 030	10.00	25.0	20.00	58.00	29.0	27.00	~	71EAD3871D313 ~	0.00~	6244433		0

Coolant pressure 20.40 bar and flow rate 10-20l/min
Rotational spindle speed [rpm]: 35,000.53,000 (rev/min)
The spindle provides only external strong coolant jet around the tool
TD: TL (Tool Length)+33 mm
