TaeguTec Cutting Tools - Metal Working Tools

IHSR : Rough boring tools used for twin cutter configuration, with their radial and axial edge position inner to the opposite - finishing tool on the MB modular boring system.

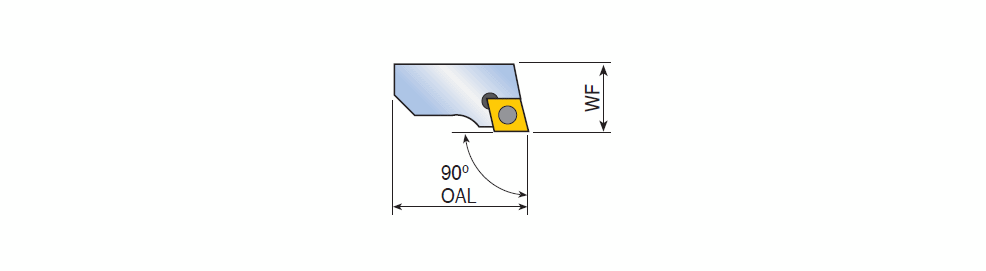

Designation	DCN	DCX	WF	OAL	IC	GICAT
IHSR 18-22	18.00	22.00	8.00	15.00	6.35~	4652464
IHSR 22-28	22.00	28.00	9.50	19.00	6.35~	4652468
IHSR 28-38	28.00	38.00	12.50	23.00	6.35~	4652476
IHSR 36-50	35.50	50.00	15.00	32.00	6.35~	4652485
IHSR 36-50-09	36.00	50.00	15.00	32.00	9.52~	4652488
IHSR 50-68-12	50.00	68.00	19.00	40.00	12.70~	4652500
IHSR 50-68	50.00	68.00	19.00	40.00	9.53~	4652497
IHSR 68-90	68.00	90.00	22.00	54.00	12.70~	4652510
IHSR 90-120	90.00	120.00	27.00	70.50	12.70~	4652513
IHSR 120-160	120.00	160.00	32.00	94.50	12.70~	4652518
IHSR 160-800	160.00	800.00	32.00	130.00	12.70~	4652523
