TaeguTec Cutting Tools - Metal Working Tools

IHCR : Boring toolholders used on the MB modular boring system.

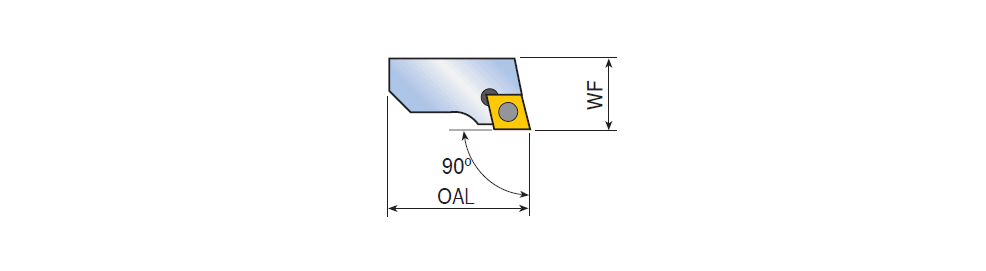

Designation	DCN	DCX	WF	OAL	IC	GICAT
IHCR 28-38	28.00	38.00	12.30	23.00	6.35~	4652477
IHCR 36-50	35.50	50.00	14.80	32.00	6.35~	4652487
IHCR 50-68	50.00	68.00	18.70	40.00	9.52~	4652499
IHCR 50-68-12	50.00	68.00	18.70	40.00	0.00~	4652501
IHCR 68-90	68.00	90.00	21.70	54.00	12.70~	4652511
IHCR 90-120	90.00	120.00	26.70	70.50	12.70~	4652515
IHCR 120-160	120.00	160.00	31.70	94.50	12.70~	4652520
IHCR 160-800	160.00	800.00	31.70	130.00	12.70~	4652525
