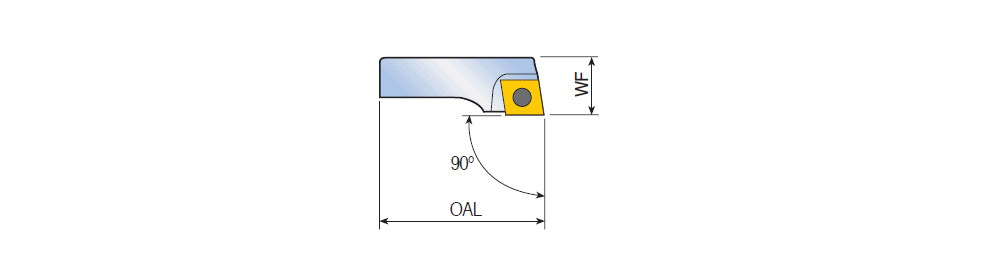

IHRF : 80° rhombic insert holders used for mounting on the MB fine boring heads.

Designation	DCN	DCX	WF	OAL	IC	S1	SS	IH	CSI	GICAT
IHRF 16	18.00	24.00	8.00	17.00	6.35~	16.00~	16 ~	16 ~	30 ~	4652462
IHRF 20	22.00	30.00	8.50	21.00	6.35~	20.00~	20 ~	20 ~	~	4652466
IHRF 25	28.00	40.00	10.00	26.50	6.35~	25.00~	25 ~	25 ~	~	4652471
IHRF 32	35.00	53.00	11.50	34.50	6.35~	32.00~	32 ~	32 ~	30 ~	4652480
IHRF 50	54.00	86.00	19.00	52.00	9.53~	50.00~	50 ~	50 ~	~	4652504
IHRF 40	54.00	86.00	14.00	44.00	9.53~	40.00~	40 ~	40 ~	40 ~	4652492
