IHRF-C : Rough boring tools used for twin cutter configuration, with their radial and axial edge position inner to the opposite - finishing tool on the BHC MB modular boring system.

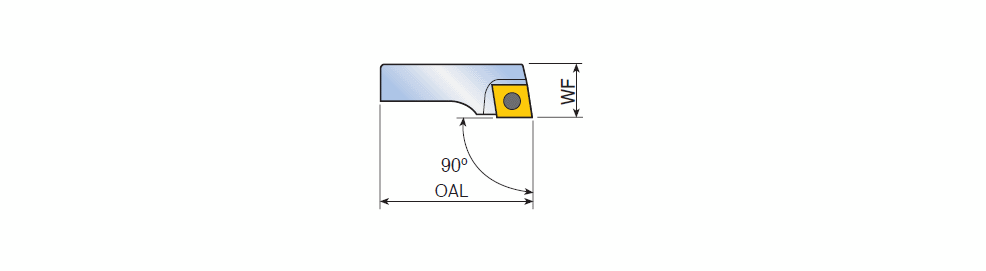

Designation	DCN	DCX	WF	OAL	IC	S1	SS	GICAT
IHRF 28-36 C	28.00	36.00	9.80	24.00	6.35~	0.00~	25 ~	4655988
IHRF 36-46 C	36.00	46.00	11.30	30.00	6.35~	0.00~	32 ~	4655989
IHRF 46-60 C	46.00	60.00	13.80	40.00	9.52~	0.00~	40 ~	4655990
IHRF 75-95 C	75.00	95.00	24.30	68.00	9.52~	0.00~	63 ~	4655992
