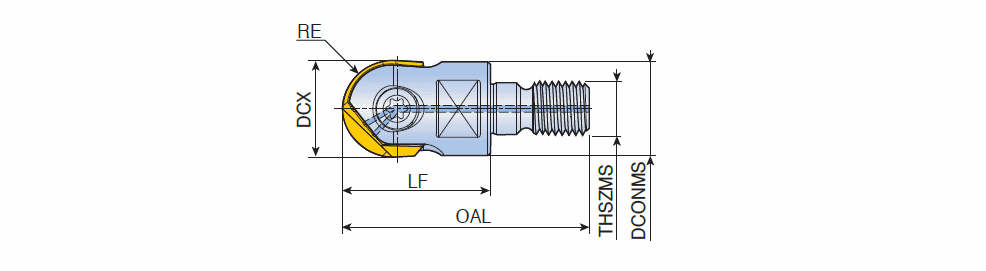

TNF...-M... : Modular end mill holders with T-FLEXTEC adaptation and NFB or NFR inserts for finishing operations

Designation	Tool sty	DCX	RE	LF	OAL	THSZMS	DCONMS	S2	S3		KAPR	HAND	Arbor	PD	Insert	ClssID	MIID		AE	CCTMS	CCFMS	CICT	IIC	IIC_2	IIC_3	IIC_4	LTA	TQ_3	GICAT
TNF 100-M06	MODULAR ~	10.00	5.00	20.00	34.50	M06	9.70	10 ~	11 ~	0.01	2.0~	~	~	F ~	FB-10 ~	71E01A05D27A8 ~	NFB 100-SM	O ~	0.0~	SAI ~	02 ~	2~	IS$$134856986011350 ~	IS$$96191134674515 ~	~	~	20.00~	0~	3109543
TNF 120-M06	MODULAR ~	12.00	6.00	23.00	37.50	M06	11.50	12 ~	13 ~	0.02	2.0~	~	~	RF ~	FB-12 ~	71E01A05D27A8 ~	NFB 120-SM	O ~	0.0~	SAI ~	02 ~	2~	IS$$125109954190776 ~	IS$$154109787991788 ~	IS$$173441978498484 ~	~	23.00~	0~	3109544
TNF 120-M08	MODULAR ~	12.00	6.00	23.00	40.50	M08	13.00	12 ~	13 ~	0.02	2.0~	~	~	RF ~	FB-12 ~	71E01A05D27A8 ~	NFB 120-SM	O ~	0.0~	SAI ~	02 ~	2~	IS$$125109954190776 ~	IS$$154109787991788 ~	IS$$173441978498484 ~	~	23.00~	0~	3109545
TNF 160-M08	MODULAR ~	16.00	8.00	30.00	47.50	M08	13.00	16 ~	17 ~	0.04	2.0~	~	~	RC ~	FB-16 ~	71E01A05D27A8 ~	NFB 160-SM	O ~	0.0~	SAI ~	02 ~	2~	IS$$115429599161760 ~	IS$$125086661624496 ~	IS$$163755808434192 ~	~	30.00~	0~	3109546
TNF 200-M10	MODULAR ~	20.00	10.00	30.00	50.00	M10	19.00	20 ~	21 ~	0.07	2.0~	~	~	RC ~	FB-20 ~	71E01A05D27A8 ~	NFB 200-SM	O ~	0.0~	SAI ~	02 ~	2~	IS$$106172470573365 ~	IS$$125506178038429 ~	IS$$154504575708193 ~	~	30.00~	0~	3109547
TNF 250-M12	MODULAR ~	25.00	12.50	35.00	57.00	M12	24.00	25 ~	26 ~	0.12	2.0~	~	~	C ~	FB-25 ~	71E01A05D27A8 ~	NFB 250-SM	O ~	0.0~	SAI ~	02 ~	2~	IS$$106076507475834 ~	IS$$135084653461184 ~	IS$$154408634375982 ~	~	35.00~	0~	3109548
TNF 250-M16	MODULAR ~	25.00	12.50	43.00	68.00	M16	29.00	25 ~	26 ~	0.20	2.0~	~	~	C ~	FB-25 ~	71E01A05D27A8 ~	NFB 250-SM	O ~	0.0~	SAI ~	02 ~	2~	IS$$106076507475834 ~	IS$$135084653461184 ~	IS$$154408634375982 ~	~	43.00~	0~	3111813
TNF 300-M16	MODULAR ~	30.00	15.00	43.00	68.00	M16	29.00	30 ~	32 ~	0.23	2.0~	~	~	C ~	FB-30 ~	71E01A05D27A8 ~	NFB 300-SM	O ~	0.0~	SAI ~	02 ~	2~	IS$$125141389645560 ~	IS$$144466536257296 ~	IS$$220585341739386 ~	IS$$239910525653146 ~	43.00~	0~	3108893
TNF 320-M16	MODULAR ~	32.00	16.00	43.00	68.00	M16	29.50	32 ~	32 ~	0.24	2.0~	~	~	C ~	FB-32 ~	71E01A05D27A8 ~	NFB 300-SM	O ~	0.0~	SAI ~	02 ~	2~	IS$$144466536257296 ~	IS$$239910525653146 ~	~	~	43.00~	0~	3109549
