TaeguTec Cutting Tools - Metal Working Tools - Parting & Grooving -

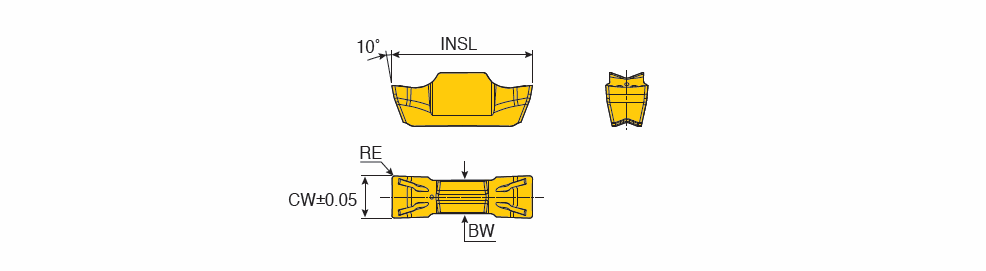

TDIM : Pressed double-ended inserts for Internal and external Turning and grooving

Designation	SSC	CW	RE	BW	INSL	h	SC	R	ft (min)	ft (max)	ap (min)	ap (max)	fg (min)	fg (max)	CB1	W	W+-toler	ClssID	HAND	CEDC	COATP	CBMD	GRDMFG	IIC	GICAT	GIREM	giic	GICODE	Grade & Vc Click on grade for cutting speed value
TDIM 2E-0.15	2	2.00	0.15	1.6	10.00	14.0~	L ~	0.050~	0.05	0.08	0.20	0.60	0.03	0.05	M5 ~	2.00~	0.05~	71DDA089C8D1E ~	N ~	2~	PVD ~	M ~	TT9080~	IS$$431751768690435 ~	6402249		1		TT9080
TDIM 3E-0.2	3	3.00	0.20	2.4	10.00	14.0~	L ~	0.050~	0.10	0.14	0.30	1.30	0.05	0.09	M5 ~	3.00~	0.05~	71DDA089C8D1E ~	N ~	2~	PVD ~	M ~	TT9080~	IS$$431752020833985 ~	6402129		1		TT9080
