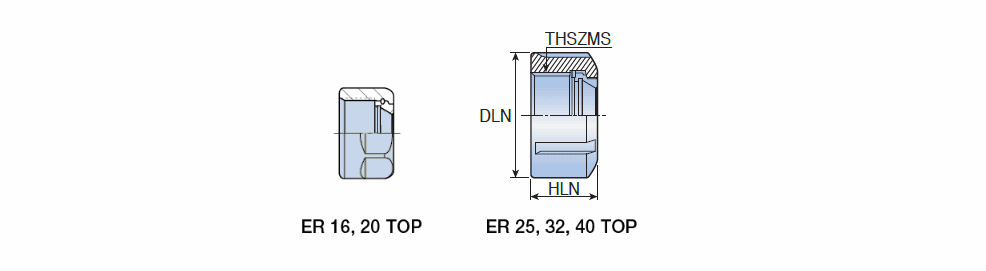

NUT-ER-TOP : DIN 6499 ER top clamping nut for ER collet chucks


  DesignationDLN HLN THSZMS GICATGIREMgiicGICODE
  NUT ER 16 TOP 28.0017.00M22X1.5 4650662 0
  NUT ER 20 TOP 34.0019.00M25X1.5 4650663 0
  NUT ER 25 TOP 42.0020.00M32X1.5 4650664 0
  NUT ER 32 TOP 50.0022.00M40X1.5 4650665 0
  NUT ER 40 TOP 63.0025.00M50X1.5 4650666 0
