NUT-MINI/UM-ER : DIN 6499 ER clamping nuts for ER mini collet chucks

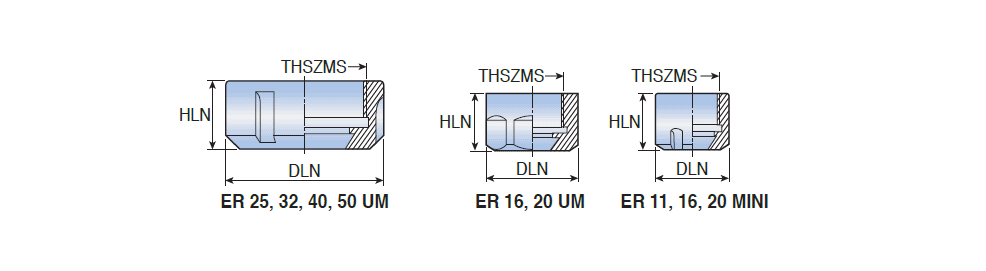

  DesignationDLN HLN THSZMS GICATGIREMgiicGICODE
  NUT ER 11 MINI 16.0010.80M13X0.75 4650668 0
  NUT ER11 UM 19.0011.30M14X0.75 4650669 0
  NUT ER 16 MINI 22.0018.00M19X1.0 4650670 0
  NUT ER16 UM 28.0017.00M22X1.5 4650671 0
  NUT ER 20 MINI 28.0019.00M24X1.0 4650672 0
  NUT ER20 UM 34.0019.00M25X1.5 4650673 0
  NUT ER 25 MINI 35.0020.00M30X1.5 4653204 0
  NUT ER25 UM 42.0020.00M32X1.5 4650674 0
  NUT ER32 UM 50.0022.00M40X1.5 4650675 0
  NUT ER40 UM 63.0025.00M50X1.5 4650676 0
  NUT ER50 UM 78.0055.00M64X2.0 4650677 0
