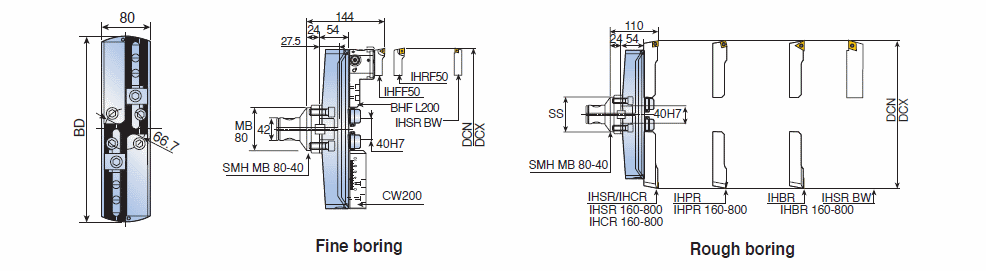

TCH : Rough and fine boring heads for 200-500 mm diameter range, used on the MB modular boring system.

Designation	DCONMS	DCN	DCX	BD		GICAT
TCH 200	80	200.00	300.00	194.00	3.40	4652434
TCH 300	80	300.00	400.00	298.00	4.30	4652435
TCH 400	80	400.00	500.00	398.00	6.70	4652436

Aluminum body, with steel serrated seats.
Please verify that the weight of the entire tool assembly does not exceed the machine spindle's carrying capability.
