Family Designation: TCAP-2.25DN-GV Multifunction tools for drilling, boring, facing, grooving & external turning with maximum 2.25xD length & coolant holes
Grooving insert is available for right handed type

Grooving insert is available for right handed type

 DR T-CAP_1  DR T-CAP_2  DR T-CAP_3  DR T-CAP_4  DR T-CAP_5
Item Designation: TCAP 20R-2.25DN-GV
Tool sty DC DCONMS WF LU LPR LS OAL DMIN CNT l S1 S2 CBMD  Machines Zeff Shank HAND ClssID MIID CICT Tool typ L/D GICATGIREMgiic
INSERT TYPE ~20.0025.0013.2045.055.0056.0111.0023.50G 1/8 10.50~10.00~2 ~ G ~O ~NON-ROTATING ~1~W ~R ~71E01A00BD93C ~XCMT 10T304 TC 1~ROUND ~2.25~3203447 0
Catalog NoFiles PackageGISCGTCDXFAdd to favoritesProperties FileP21
3203447 1<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=STPL&p21=3203447&cat=3203447&itemDesc=TCAP 20R-2.25DN-GV"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a><a href="javascript:OpenDxf('3203447', 'TCAP 20R-2.25DN-GV' , 'DXF' , '3203447 - TCAP 20R-2.25DN-GV');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a><a href="FilesDownload.aspx?FileType=P&cat=3203447&itemDesc=TCAP 20R-2.25DN-GV"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a>
Items Per Package : 1
3D Representation

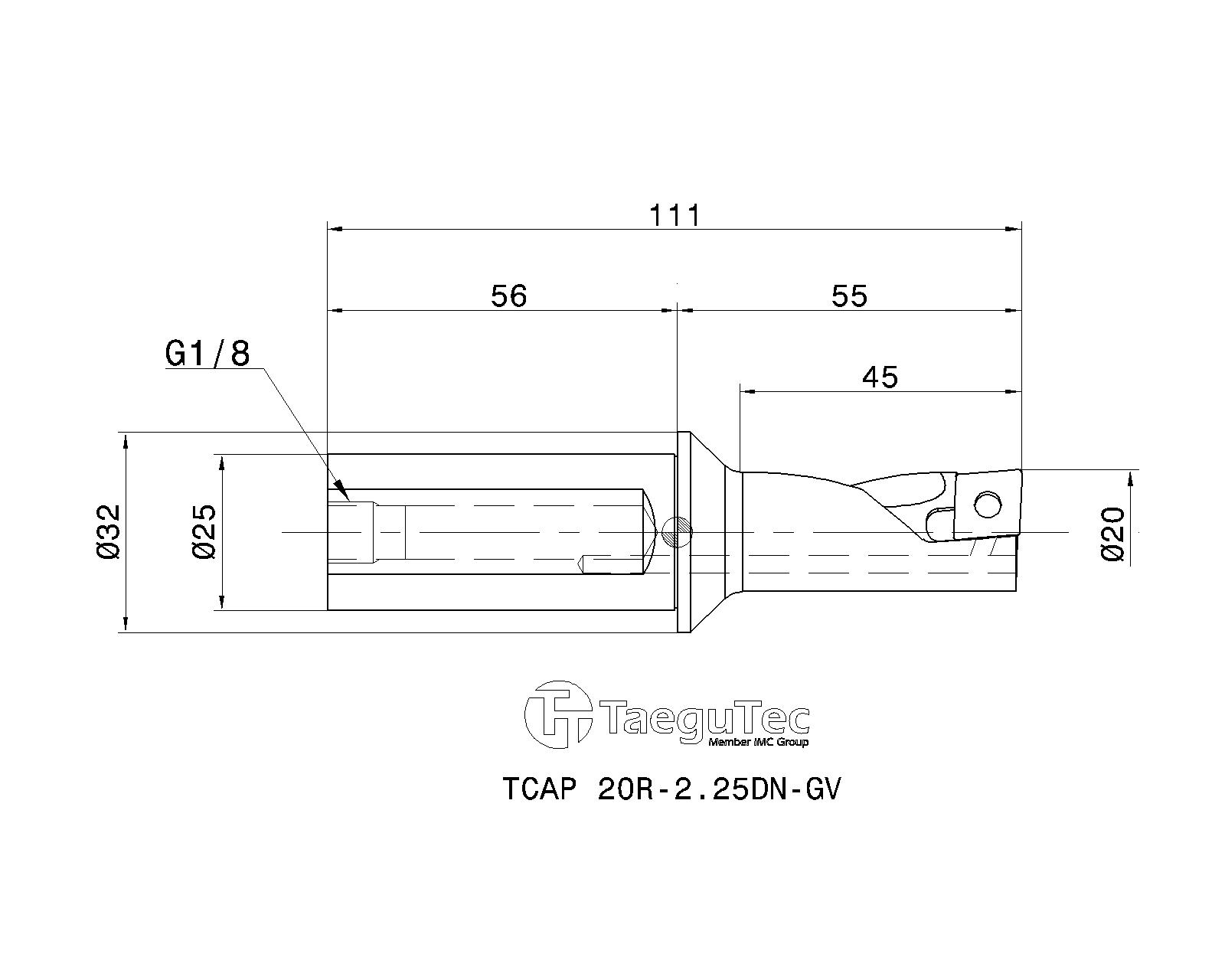

2D Representation
  Spare Parts
4353190TS 35088I/HG-PScrew
4352066TD 10P(362IP 26099)TD wrench
