Family Designation: TCAP-2.25DN-GV Multifunction tools for drilling, boring, facing, grooving & external turning with maximum 2.25xD length & coolant holes
Grooving insert is available for right handed type

Grooving insert is available for right handed type

 DR T-CAP_1  DR T-CAP_2  DR T-CAP_3  DR T-CAP_4  DR T-CAP_5
Item Designation: TCAP 14L-2.25DN-GV
Tool sty DC DCONMS WF LU LPR LS OAL DMIN CNT l S1 S2 CBMD  Machines Zeff Shank HAND ClssID MIID CICT Tool typ L/D GICATGIREMgiic
INSERT TYPE ~14.0016.009.5031.538.5045.083.5016.50G 1/8 7.50~7.00~1 ~ G ~O ~NON-ROTATING ~1~W ~L ~71E01A00BD93C ~XCMT 070304 TC 1~ROUND ~2.25~3203867 0
Catalog NoFiles PackageGISCGTCDXFAdd to favoritesProperties FileP21
3203867 1<a href="FilesDownload.aspx?FileType=GTC&dxfFolder=DXF&stpFolder=STP&stplFolder=STPL&p21=3203867&cat=3203867&itemDesc=TCAP 14L-2.25DN-GV"><img src="./media/icons/icon_Package.svg" title="GTC" width="27px" border="0"></a><a href="javascript:OpenDxf('3203867', 'TCAP 14L-2.25DN-GV' , 'DXF' , '3203867 - TCAP 14L-2.25DN-GV');"><img src="./media/icons/icon_dxf.svg" title="DXF" width="27px" border="0"></a><a href="FilesDownload.aspx?FileType=P&cat=3203867&itemDesc=TCAP 14L-2.25DN-GV"><img src="./media/icons/icon_p21.svg" title="P21" width="27px" border="0"></a>
Items Per Package : 1
3D Representation

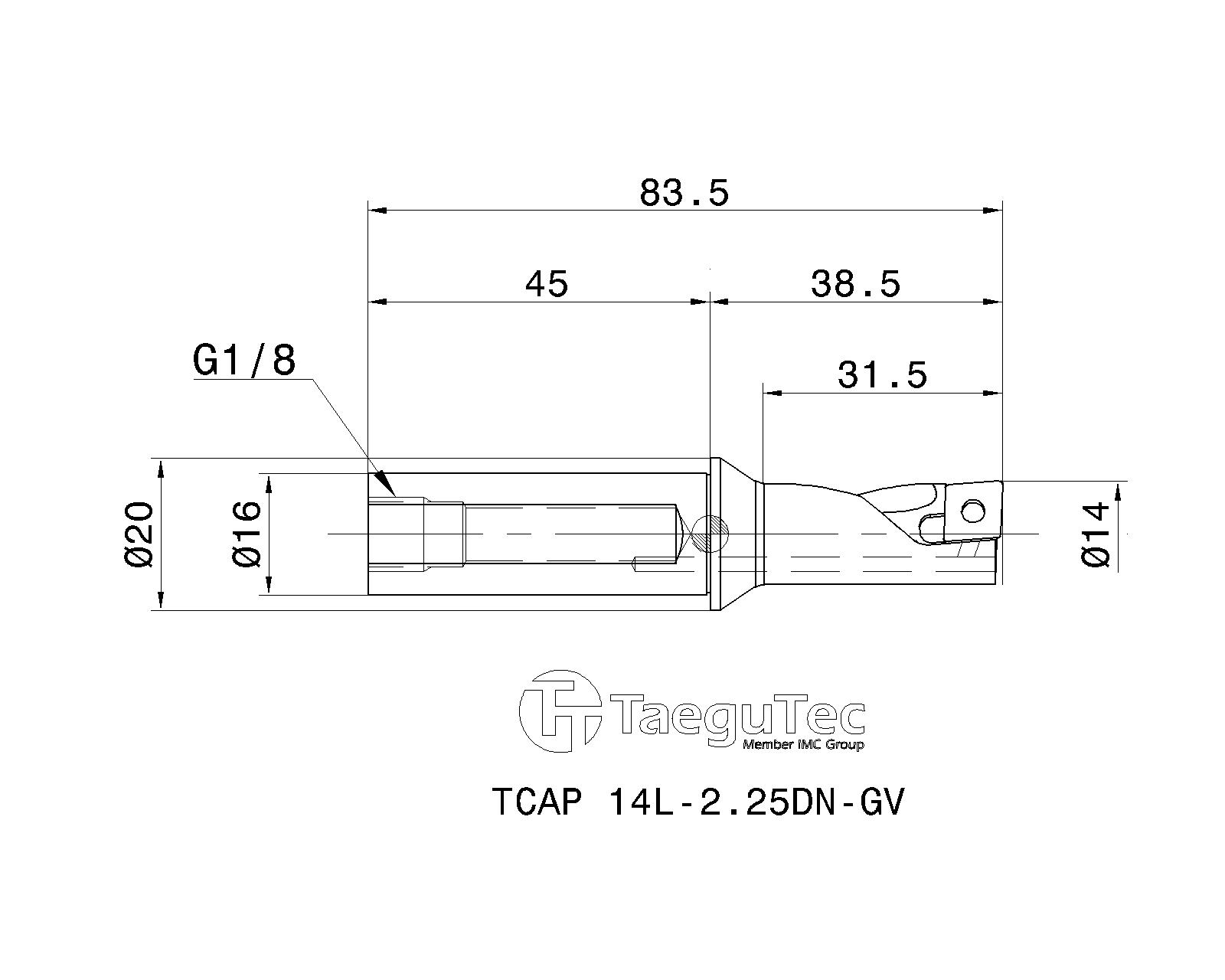

2D Representation
  Spare Parts
4353188TS 25064I/HG-PScrew
4353193T 8PTorx flag wrench
