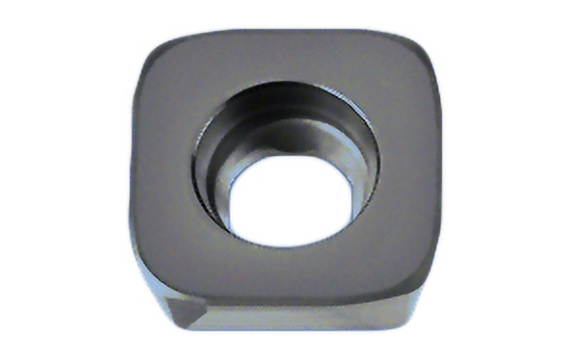

SDXS1305MPR-MR : 4-schneidige,neutrale Geometrie, konvex, gefast

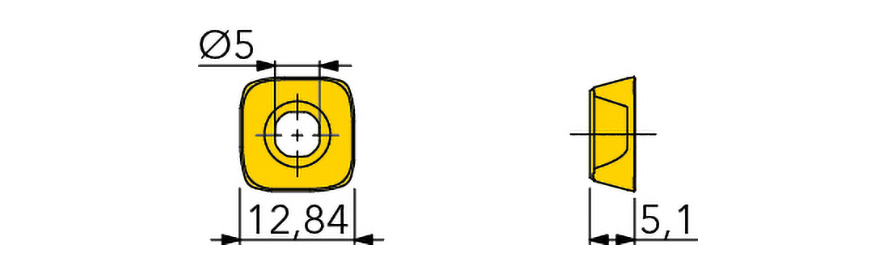

Designation	l	d	t	IC	R	D1	Drehrich	Z	E r	a n hs	T	f min.	f max.	ap min.	ap max.	HM	ART-TypI	ESP	Tolkl.	Bem.	Befestig	Form	Normbeze	SC-WSP	ISYC	DIN-BLD	NORM	GICAT	GIREM	giic	GICODE	Tough ‹————› Hard Grade & Vc
SDXS1305MPR-MR	12.84	12.84	5.08	12.84	1.50	5.00	N	4	90.0	15.0~	HF-INS~	0.50	1.80	0.50	4.90	0.20~	FF~	U50~	~	Radial~	3~	Quadratisch~	0~	SDXS1305_H_R~	201-2~	SPJ-2~	DIN 4000-76~	6257496		2	Y	IN4036 IN6537
SDXS1305MPR-MR K	12.84	12.84	5.08	12.84	1.50	5.00	N	4	90.0	15.0~	HF-INS~	0.20	1.80	0.50	4.90	0.20~	FF~	G80~	~	Radial~	3~	Quadratisch~	0~	SDXS1305_H_R~	201-2~	SPJ-2~	DIN 4000-76~	3084694		3		IN4005 IN2505 IN2504

For cutting speed recommendations, click on the required grade number related to specific item geometry
