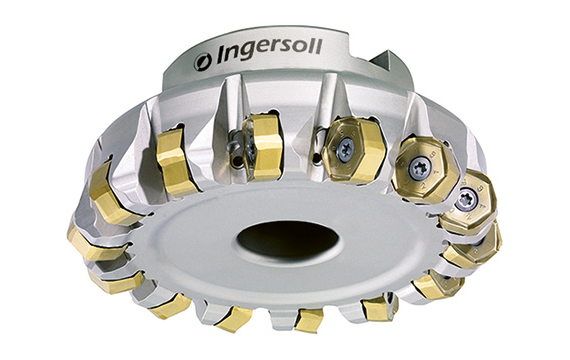

DH HN_G_ DIN8030 : Face Mill HN_G Adaption acc. to DIN 8030

Adaption acc. to DIN 8030

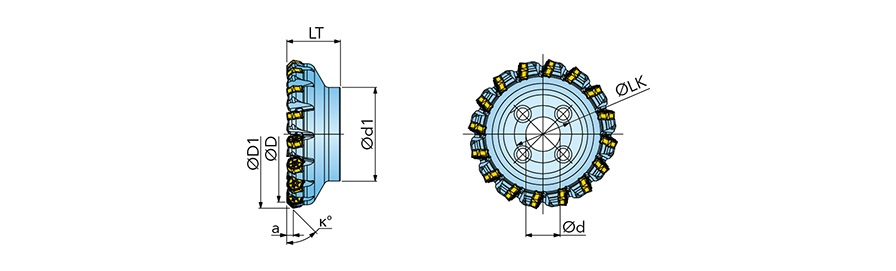

Designation	ORD	D	D1	Z	a	LT	LTA	K°	d	d1	LK	IK	Norm	Drehrich		SC-A	CCTMS	CCFMS	SC-WSP	AP-B	D2-ber	CPDN	dxf	ISYC	DIN-BLD	NORM	GICAT
HN6G063R00	10~	63.00	77.5	5	5.00	50.00	50.00~	45.0	22.00	47.00	-	Y	DIN 8030~	R~	0.850~	F1~	FDA~	22~	HNGU1107___N~	0.20~	0.00~	RC~	3084896~	308-1~	FBJ-1~	DIN 4000-88~	3084896
HN5G063R00	20~	63.00	77.5	7	5.00	50.00	50.00~	45.0	22.00	47.00	-	Y	DIN 8030~	R~	0.920~	F1~	FDA~	22~	HNGU1107___N~	0.20~	0.00~	RF~	3085325~	308-1~	FBJ-1~	DIN 4000-88~	3085325
HN6G080R00	30~	80.00	94.5	6	5.00	50.00	50.00~	45.0	27.00	70.00	-	Y	DIN 8030~	R~	1.450~	F2~	FDA~	22~	HNGU1107___N~	0.20~	0.00~	RC~	3085558~	308-1~	FBJ-1~	DIN 4000-88~	3085558
HN5G080R00	40~	80.00	94.5	9	5.00	50.00	50.00~	45.0	27.00	70.00	-	Y	DIN 8030~	R~	1.610~	F2~	FDA~	22~	HNGU1107___N~	0.20~	0.00~	RF~	3085559~	308-1~	FBJ-1~	DIN 4000-88~	3085559
HN6G100R00	50~	100.00	114.5	7	5.00	50.00	50.00~	45.0	32.00	85.00	-	Y	DIN 8030~	R~	2.510~	F3~	FDA~	22~	HNGU1107___N~	0.20~	0.00~	RC~	3085560~	308-1~	FBJ-1~	DIN 4000-88~	3085560
HN5G100R00	60~	100.00	114.5	11	5.00	50.00	50.00~	45.0	32.00	85.00	-	Y	DIN 8030~	R~	2.700~	F3~	FDA~	22~	HNGU1107___N~	0.20~	0.00~	F~	3085561~	308-1~	FBJ-1~	DIN 4000-88~	3085561
HN6G125R00	70~	125.00	139.5	8	5.00	63.00	63.00~	45.0	40.00	85.00	-	Y	DIN 8030~	R~	4.020~	F4~	FDA~	22~	HNGU1107___N~	0.20~	0.00~	RC~	3085562~	308-1~	FBJ-1~	DIN 4000-88~	3085562
HN5G125R00	80~	125.00	139.5	14	5.00	63.00	63.00~	45.0	40.00	85.00	-	Y	DIN 8030~	R~	4.230~	F4~	FDA~	22~	HNGU1107___N~	0.20~	0.00~	XF~	3085563~	308-1~	FBJ-1~	DIN 4000-88~	3085563
