TaeguTec Cutting Tools - Metal Working Tools - Hole Making -

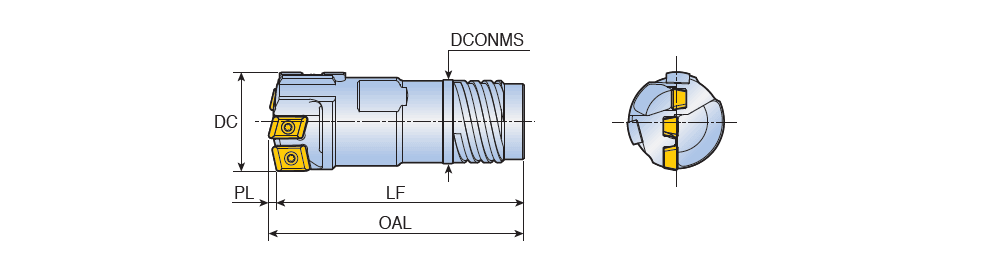

TBTA-FB...SE4 : Deep single tube drills with outer 4 start thread and fixed pocket with NPHT & NPMT insert for High feed covering dia 25-65 mm

Outer four start thread

Designation	DCN	DCX	LF	OAL	DCONMS	PL	Tube	Tube dia	CBMD		Machines	L1	CICT	IIC	GICAT
TBTA-FB25.00-26.40SE4-22	25.00	26.40	70.00	73.00	19.50	3.00	BTSI 022	22.0	~	~	~	0.0~	3~	IS$$1624559905819408 ~	6211696
TBTA-FB26.41-28.70SE4-24	26.40	28.70	70.00	73.00	21.00	3.00	BTSI 024	24.0	~	~	~	0.0~	3~	IS$$1624559905819408 ~	6211697
TBTA-FB28.71-31.00SE4-26	28.70	31.00	75.00	78.00	23.50	3.00	BTSI 026	26.0	~	~	~	0.0~	3~	IS$$1624559905819408 ~	6211698
TBTA-FB31.01-33.30SE4-28	31.00	33.30	75.00	78.00	25.50	3.00	BTSI 028	28.0	~	~	~	0.0~	3~	IS$$1624559905819408 ~	6211699
TBTA-FB33.31-36.20SE4-30	33.30	36.20	80.00	83.00	28.00	3.00	BTSI 030	30.0	~	~	~	0.0~	3~	IS$$1624559905819408 ~	6211700
TBTA-FB36.21-39.60SE4-33	36.20	39.60	90.00	93.00	30.00	3.00	BTSI 033	33.0	~	~	~	0.0~	3~	IS$$1624559905819408 ~	6211702
TBTA-FB39.61-43.00SE4-36	39.60	43.00	95.00	99.00	33.00	4.00	BTSI 036	36.0	~	~	~	0.0~	3~	IS$$1624559905819408 ~	6211703
TBTA-FB43.01-47.00SE4-39	43.00	47.00	100.00	104.00	36.00	4.00	BTSI 039	39.0	~	~	~	0.0~	3~	IS$$1624559905819408 ~	6211704
TBTA-FB47.01-51.70SE4-43	47.00	51.70	100.00	104.00	39.00	4.00	BTSI 043	43.0	~	~	~	0.0~	3~	IS$$1624559905819408 ~	6211705
TBTA-FB51.71-56.20SE4-47	51.70	56.20	110.00	114.00	43.00	4.00	BTSI 047	47.0	~	~	~	0.0~	3~	IS$$1624559905819408 ~	6211706
TBTA-FB56.21-60.60SE4-51	56.20	60.60	115.00	120.00	47.00	5.00	BTSI 051	51.0	~	~	~	0.0~	3~	IS$$1624559905819408 ~	6211707
TBTA-FB60.61-65.00SE4-51	60.60	65.00	115.00	120.00	47.00	5.00	BTSI 051	51.0	~	~	~	0.0~	3~	IS$$1624559905819408 ~	6211708
TBTA-FB60.61-65.00SE4-56A	60.60	65.00	115.00	120.00	51.00	5.00	BTSI 056A	56.0	~	~	~	0.0~	3~	IS$$1624559905819408 ~	6211709
TBTA-FB65.01-66.99SE4-56B	65.01	66.99	141.00	149.00	52.00	8.00	BTSI 056B	56.0	~	~	~	0.0~	3~	IS$$1624559905819408 ~	6273386
TBTA-FB67.00-72.99SE4-62	67.00	72.99	141.00	149.00	58.00	8.00	BTSI 062	62.0	~	~	~	0.0~	3~	IS$$1624559905819408 ~	6273387
TBTA-FB73.00-79.99SE4-68	73.00	79.99	141.00	150.00	63.00	9.00	BTSI 068	68.0	~	~	~	0.0~	3~	IS$$1624559905819408 ~	6273388
TBTA-FB80.00-86.99SE4-75	80.00	86.99	164.00	173.00	70.00	9.00	BTSI 075	75.0	~	~	~	0.0~	3~	IS$$1624559905819408 ~	6273389
TBTA-FB87.00-89.00SE4-82	87.00	89.00	164.00	173.00	77.00	9.00	BTSI 082	82.0	~	~	~	0.0~	3~	IS$$1624559905819408 ~	6273390
