TBTA-FB...DE4 : Deep double tube drills with outer 4 start thread and fixed pocket with NPHT & NPMT insert for High feed covering dia 25-65 mm

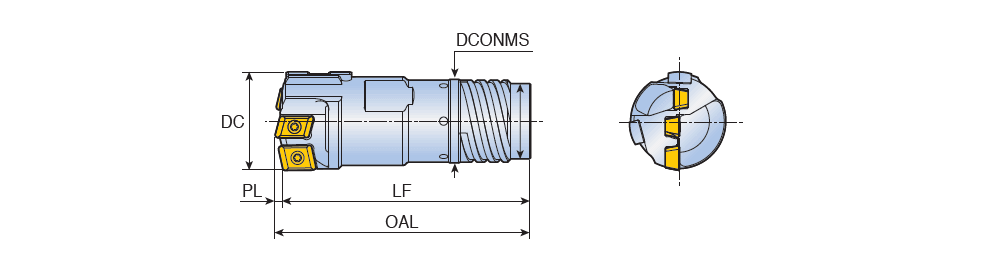

Outer four start thread

Designation	DCN	DCX	LF	OAL	DCONMS	PL	Outer	Inner	Tube dia	CBMD		Machines	L1	CICT	GICAT
TBTA-FB25.0-26.40DE4-23.5	25.00	26.40	70.00	73.00	21.00	3.00	BTDO 023.5	BTDI 016	23.5	~	~	~	0.0~	3~	6211735
TBTA-FB26.41-28.70DE4-26	26.40	28.70	75.00	78.00	23.50	3.00	BTDO 026	BTDI 018	26.0	~	~	~	0.0~	3~	6211736
TBTA-FB28.71-31.00DE4-28	28.70	31.00	75.00	78.00	25.50	3.00	BTDO 028	BTDI 020	28.0	~	~	~	0.0~	3~	6211738
TBTA-FB31.01-33.3DE4-30.5	31.00	33.30	80.00	83.00	28.00	3.00	BTDO 030.5	BTDI 022	30.5	~	~	~	0.0~	3~	6211740
TBTA-FB33.31-36.20DE4-33	33.30	36.20	90.00	93.00	30.00	3.00	BTDO 033	BTDI 024	33.0	~	~	~	0.0~	3~	6211741
TBTA-FB36.21-39.6DE4-35.5	36.20	39.60	95.00	99.00	33.00	4.00	BTDO 035.5	BTDI 026	35.5	~	~	~	0.0~	3~	6211742
TBTA-FB39.61-43.00DE4-39	39.60	43.00	100.00	104.00	36.00	4.00	BTDO 039	BTDI 029	39.0	~	~	~	0.0~	3~	6211743
TBTA-FB43.01-47.0DE4-42.5	43.00	47.00	100.00	104.00	39.00	4.00	BTDO 042.5	BTDI 032	42.5	~	~	~	0.0~	3~	6211744
TBTA-FB47.01-51.7DE4-46.5	47.00	51.70	110.00	114.00	43.00	4.00	BTDO 046.5	BTDI 035	46.5	~	~	~	0.0~	3~	6211745
TBTA-FB51.71-56.20DE4-51	51.70	56.20	115.00	120.00	47.50	5.00	BTDO 051	BTDI 039	51.0	~	~	~	0.0~	3~	6211746
TBTA-FB56.21-65.0DE4-55.5	56.20	65.00	115.00	120.00	51.00	5.00	BTDO 055.5	BTDI 043A	55.5	~	~	~	0.0~	3~	6211747

Insert and guide pad are sold separately from drill body.
