Hole Making
Main Application

TBTA-FB...SI1 : Deep single tube drills with inner 1 start thread and fixed pocket with NPHT & NPMT insert for High feed covering dia 25-65 mm

Inner single start thread

Inner single start thread
 DR COOLANT-TOP/TDR/TND/HFD

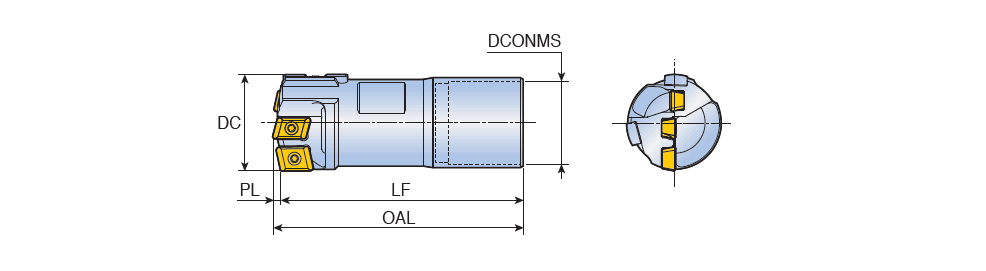

  DesignationDCN DCX LF OAL DCONMS PL Tube Tube dia CBMD  Machines L1 CICT IIC GICATGIREMgiicGICODE
  TBTA-FB25.00-26.99SI1-22 25.0026.9970.0073.0020.003.00BTSE 022 22.0 ~ ~ ~0.0~3~IS$$1624559905819408 ~6211711 0
  TBTA-FB27.00-29.00SI1-24 27.0029.0070.0073.0022.003.00BTSE 024 24.0 ~ ~ ~0.0~3~IS$$1624559905819408 ~6211712 0
  TBTA-FB29.01-29.99SI1-24 29.0129.9970.0073.0022.003.00BTSE 024 24.0 ~ ~ ~0.0~3~IS$$1624559905819408 ~6211713 0
  TBTA-FB30.00-31.99SI1-26 30.0031.9975.0078.0024.003.00BTSE 026 26.0 ~ ~ ~0.0~3~IS$$1624559905819408 ~6211715 0
  TBTA-FB32.00-33.99SI1-28 32.0033.9975.0078.0026.003.00BTSE 028 28.0 ~ ~ ~0.0~3~IS$$1624559905819408 ~6211716 0
  TBTA-FB34.00-36.99SI1-30 34.0036.9990.0093.0027.003.00BTSE 030 30.0 ~ ~ ~0.0~3~IS$$1624559905819408 ~6211717 0
  TBTA-FB37.00-39.99SI1-33 37.0039.9995.0098.0030.003.00BTSE 033 33.0 ~ ~ ~0.0~3~IS$$1624559905819408 ~6211718 0
  TBTA-FB40.00-43.99SI1-36 40.0043.99100.00104.0033.004.00BTSE 036 36.0 ~ ~ ~0.0~3~IS$$1624559905819408 ~6211719 0
  TBTA-FB44.00-46.99SI1-39 44.0046.99105.00109.0037.004.00BTSE 039 39.0 ~ ~ ~0.0~3~IS$$1624559905819408 ~6211720 0
  TBTA-FB47.00-51.99SI1-43 47.0051.99105.00109.0041.004.00BTSE 043 43.0 ~ ~ ~0.0~3~IS$$1624559905819408 ~6211721 0
  TBTA-FB52.00-56.99SI1-47 52.0056.99110.00114.0044.004.00BTSE 047 47.0 ~ ~ ~0.0~3~IS$$1624559905819408 ~6211723 0
  TBTA-FB57.00-60.99SI1-51 57.0060.99115.00120.0049.005.00BTSE 051 51.0 ~ ~ ~0.0~3~IS$$1624559905819408 ~6211724 0
  TBTA-FB61.00-65.00SI1-56 61.0065.00115.00120.0053.005.00BTSE 056 56.0 ~ ~ ~0.0~3~IS$$1624559905819408 ~6211725 0
  TBTA-FB65.01-67.99SI1-56 65.0167.99104.00112.0053.008.00BTSE 056 56.0 ~ ~ ~0.0~3~IS$$1624559905819408 ~6273392 0
  TBTA-FB68.00-74.99SI1-62 68.0074.99104.00113.0059.009.00BTSE 062 62.0 ~ ~ ~0.0~3~IS$$1624559905819408 ~6273394 0
  TBTA-FB75.00-80.99SI1-68 75.0080.99134.00143.0065.009.00BTSE 068 68.0 ~ ~ ~0.0~3~IS$$1624559905819408 ~6273396 0
  TBTA-FB81.00-89.00SI1-75 81.0089.00134.00143.0071.009.00BTSE 075 75.0 ~ ~ ~0.0~3~IS$$1624559905819408 ~6273397 0
Insert and guide pad are sold separately from drill body.
