Hole Making
Main Application

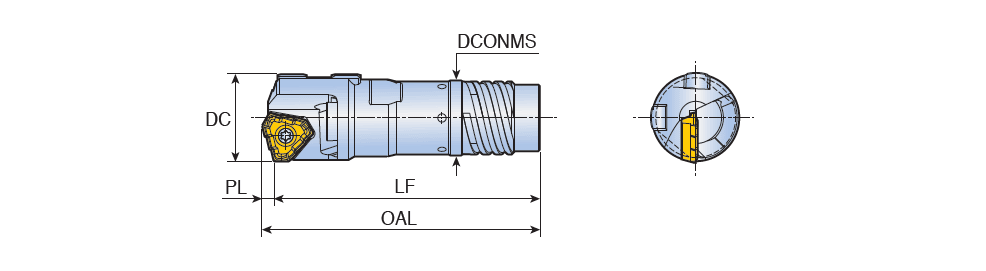

TBTA-TR...DE4 : Deep double tube drills with outer 4 start thread and TOGT triangular insert (16-28 dia)

Outer four start thread

Outer four start thread
 DR COOLANT-TOP/TDR/TND/HFD
  DesignationDCN DCX LF OAL DCONMS PL Tube Tube dia CBMD  Machines L1 d1 CICT GICATGIREMgiicGICODE
  TBTA-TR18.40-20.00DE4-18 18.4020.0059.0062.0016.003.00BTDO 018 18.0 ~ ~ ~0.0~0.0~1~6211809 0
  TBTA-TR20.01-21.80DE419.5 20.0121.8063.5066.7018.003.20BTDO 019.5 19.5 ~ ~ ~0.0~0.0~1~6211810 0
  TBTA-TR21.81-21.99DE421.5 21.8121.9963.5066.7019.503.20BTDO 021.5 21.5 ~ ~ ~0.0~0.0~1~6211811 0
  TBTA-TR22.00-24.10DE421.5 22.0024.1065.5068.9019.503.40BTDO 021.5 21.5 ~ ~ ~0.0~0.0~1~6211812 0
  TBTA-TR24.11-25.00DE423.5 24.1125.0065.5068.9021.003.40BTDO 023.5 23.5 ~ ~ ~0.0~0.0~1~6211813 0
  TBTA-TR25.01-26.40DE423.5 25.0126.4065.5071.1021.003.60BTDO 023.5 23.5 ~ ~ ~0.0~0.0~1~6211814 0
  TBTA-TR26.41-28.00DE4-26 26.4128.0070.5074.1023.503.60BTDO 026 26.0 ~ ~ ~0.0~0.0~1~6211815 0
Insert and guide pad are sold separately from drill body.
