TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

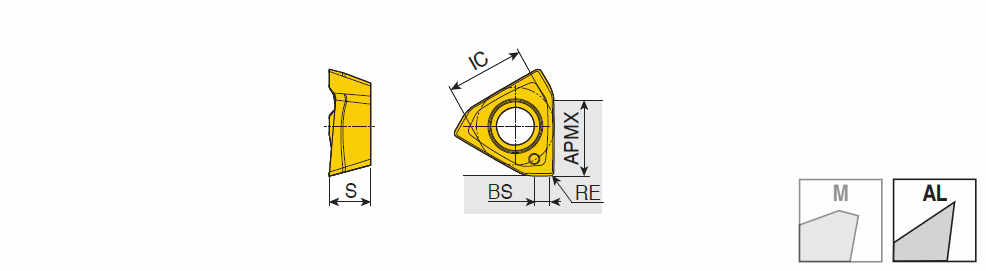

3PHT 19-AL : High positive & top polished & periphery ground inserts 3PHT with 3 cutting edges for aluminum & non-ferrous materials

Designation	IC	S	BS	RE	ap	S1	CE	Insert	ap (min)	ap (max)	fz (max)	fz (min)	SF	SC	ClssID	ESP	CB	GRDMFG	IIC	Pocket	WEP	GICAT	GIREM	giic	GICODE	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
3PHT 190604R-AL	13.50	6.00	2.40	0.40	15.00	19.00~	0~	MR-3P19 ~	4.50	12.00	0.500	0.150	~	T ~	71DD68D8446CE ~	~	AL ~	K10 ~	IS$$364735546342328 ~	3PK(H)T 19 ~	0~	6289271		2		TTA101 K10
3PHT 190608R-AL	13.50	6.00	2.00	0.80	15.00	19.00~	0~	MR-3P19 ~	4.50	12.00	0.500	0.150	~	T ~	71DD68D8446CE ~	~	AL ~	K10 ~	IS$$364735546342328 ~	3PK(H)T 19 ~	0~	6289272		2		TTA101 K10
