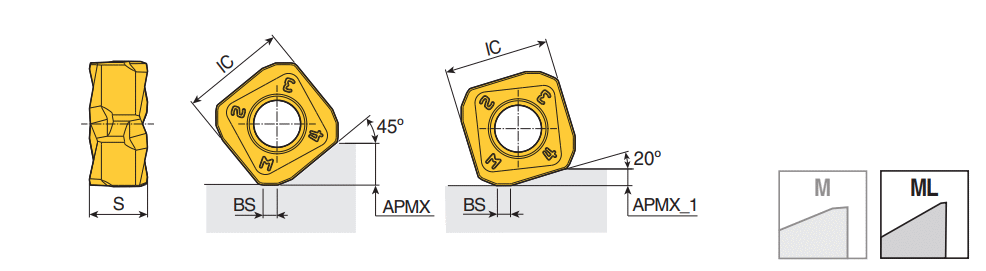

SQKU 11 ANR-ML : Double-sided Square inserts with 8 cutting edges for roughing (45°) and high feed (20°) face milling and high feed machining.

Designation	IC	S	APMX	BS	S1	ap (min)	ap (max)	fz (max)	fz (min)	APMX_1	ap1 (min)	ap1 (max)	fz1 (max)	fz1 (min)	SF	Insert	CE	SC	ClssID	ESP	apmax MF	CB	CEDC	GRDMFG	IIC	Pocket	WEP	GICAT	GIREM	giic	GICODE	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
SQKU 1105 ANR-ML	11.20	6.30	4.20	1.90	11.00~	1.00	4.00	0.250	0.100	1.80	0.20	1.50	1.500	0.300	~	~	0~	S ~	71DD68D829217 ~	U40 ~	4.00~	ML ~	8~	TT3535~	IS$$701109547530651 ~	SQKU 11 ~	0~	6263806		3		TT8080 TT3535 TT9080

For 20° facing,please refer to the parameters below
-APMX_1
-ap.min_1, ap.max_1
-fz.max_1, fz.min_1
