TaeguTec Cutting Tools - Metal Working Tools - Turning -

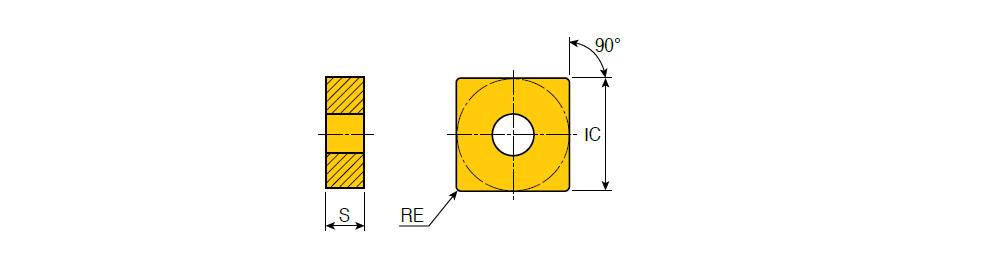

SNMG-RGP. : Negative Square inserts for rough machining of steels with reliable cutting edge and wide range of chip control

Designation	IC	S	RE	l1	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	l	SC	ClssID	COATP	SSC	GRDMFG	IFS	IIC	INSI	INST	ISO STD	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
SNMG 120408 RGP	12.70	4.76	0.80	0.00~	RGP ~	0~	0.00~	1.50	6.00	0.25	0.70	0~	~	~	0.00~	~	71DD68D829217 ~	CVD ~	12 ~	8125B ~	0~	~	~	~	~	6282858	4	TT5100 TT8125B TT7105 TT7115(TT7015B)
SNMG 120412 RGP	12.70	4.76	1.20	0.00~	RGP ~	0~	0.00~	2.00	6.00	0.25	0.70	0~	~	~	0.00~	~	71DD68D829217 ~	CVD ~	12 ~	8105B ~	0~	~	~	~	~	6282864	6	TT5100 TT8125B TT8115B TT8105B TT7105 TT7115(TT7015B)
SNMG 120416 RGP	12.70	4.76	1.60	0.00~	RGP ~	0~	0.00~	2.50	6.00	0.30	0.70	0~	~	~	0.00~	~	71DD68D829217 ~	CVD ~	12 ~	8125B ~	0~	~	~	~	~	6282859	3	TT5100 TT8125B TT7115(TT7015B)
