TaeguTec Cutting Tools - Metal Working Tools - Tooling System -

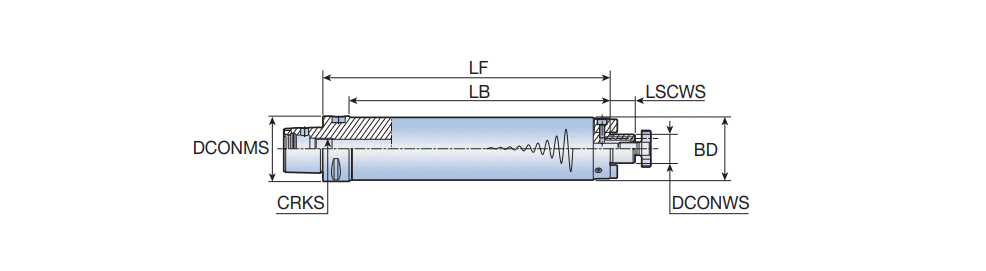

AV C*-SEM : Anti-vibration face mill arbors with coolant holes and C-ADAPTER ISO 26623-1 taper shanks

Designation	DCONMS	DCONWS	BD	LSCWS	LB	LF	CRKS			ClssID	CCTMS	CCFMS	CCTWS	CCFWS	LTA	IIC	GICAT
AV C5 SEM22 48X220	50.00	22.00	48.00	19.0	200.00	220.00	M16	3.80	O ~	71E01A0E9CBA9 ~	ZYL ~	01 ~	CMS ~	01 ~	0.00~	~	6293830
AV C5 SEM22 48X270	50.00	22.00	48.00	19.0	250.00	270.00	M16	4.70	O ~	71E01A0E9CBA9 ~	ZYL ~	01 ~	CMS ~	01 ~	0.00~	~	6293832
AV C6 SEM22 48X270	60.00	22.00	48.00	19.0	248.00	270.00	M20	4.60	O ~	71E01A0E9CBA9 ~	ZYL ~	01 ~	CMS ~	01 ~	0.00~	~	6293833
AV C6 SEM22 61X260	60.00	22.00	61.00	19.0	238.00	260.00	M20	7.50	O ~	71E01A0E9CBA9 ~	ZYL ~	01 ~	CMS ~	01 ~	0.00~	~	6293835
AV C6 SEM22 61X310	60.00	22.00	61.00	19.0	288.00	310.00	M20	8.70	O ~	71E01A0E9CBA9 ~	ZYL ~	01 ~	CMS ~	01 ~	0.00~	~	6293836
AV C6 SEM27 61X250	60.00	27.00	61.00	21.0	228.00	250.00	M20	7.40	O ~	71E01A0E9CBA9 ~	ZYL ~	01 ~	CMS ~	01 ~	0.00~	~	6293837
AV C6 SEM27 61X300	60.00	27.00	61.00	21.0	278.00	300.00	M20	8.50	O ~	71E01A0E9CBA9 ~	ZYL ~	01 ~	CMS ~	01 ~	0.00~	~	6293838
