TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

TESR-14 : High feed end mills with with 4-corner SRMT 14 inserts

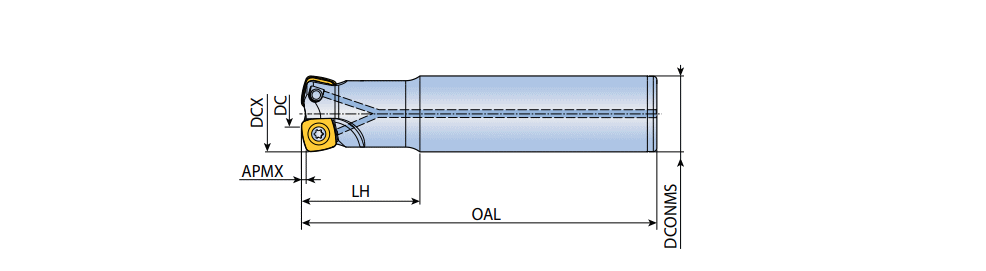

Designation	Tool sty	CICT	DCX	DC	DCONMS	OAL	LH	APMX	KAPR		S1	Shank	Rd	e	PD		Insert	Pocket	ClssID	MIID	CCTMS	CCFMS	FF/RN	IIC	LTA	ZEFF	ZEFP	ZNP	GICAT
TESR 232-32-14-L150	ENDMILL ~	2	32.00	11.90	32.00	150.00	50.0	2.00	0.0~	O ~	14.00~	C ~	0.00~	~	~	0.78	CF-SR14 ~	SRMT 14 ~	71E01A05D27A8 ~	SRMT 140620R-MM	ZYL ~	1 ~	FF ~	~	90.00~	2~	2~	2~	6282524
TESR 232-32-14-L200	ENDMILL ~	2	32.00	11.90	32.00	200.00	80.0	2.00	0.0~	O ~	14.00~	C ~	0.00~	~	~	1.03	CF-SR14 ~	SRMT 14 ~	71E01A05D27A8 ~	SRMT 140620R-MM	ZYL ~	1 ~	FF ~	~	140.00~	2~	2~	2~	6282525
TESR 233-32-14-L200	ENDMILL ~	2	33.00	12.90	32.00	200.00	50.0	2.00	0.0~	O ~	14.00~	C ~	0.00~	~	~	1.08	CF-SR14 ~	SRMT 14 ~	71E01A05D27A8 ~	SRMT 140620R-MM	ZYL ~	1 ~	FF ~	~	140.00~	2~	2~	2~	6282526
TESR 233-32-14-L250	ENDMILL ~	2	33.00	12.90	32.00	250.00	50.0	2.00	0.0~	O ~	14.00~	C ~	0.00~	~	~	1.38	CF-SR14 ~	SRMT 14 ~	71E01A05D27A8 ~	SRMT 140620R-MM	ZYL ~	1 ~	FF ~	~	190.00~	2~	2~	2~	6265801
TESR 235-32-14-L200	ENDMILL ~	2	35.00	14.90	32.00	200.00	30.0	2.00	0.0~	O ~	14.00~	C ~	0.00~	~	~	1.12	CF-SR14 ~	SRMT 14 ~	71E01A05D27A8 ~	SRMT 140620R-MM	ZYL ~	1 ~	FF ~	~	140.00~	2~	2~	2~	6282527
TESR 340-32-14-L150	ENDMILL ~	3	40.00	19.90	32.00	150.00	30.0	2.00	0.0~	O ~	14.00~	C ~	0.00~	~	~	0.84	CF-SR14 ~	SRMT 14 ~	71E01A05D27A8 ~	SRMT 140620R-MM	ZYL ~	1 ~	FF ~	~	90.00~	3~	3~	3~	6282528
TESR 340-32-14-L200	ENDMILL ~	3	40.00	19.90	32.00	200.00	30.0	2.00	0.0~	O ~	14.00~	C ~	0.00~	~	~	1.14	CF-SR14 ~	SRMT 14 ~	71E01A05D27A8 ~	SRMT 140620R-MM	ZYL ~	1 ~	FF ~	~	140.00~	3~	3~	3~	6282529
TESR 342-32-14-L200	ENDMILL ~	3	42.00	21.80	32.00	200.00	30.0	2.00	0.0~	O ~	14.00~	C ~	0.00~	~	~	1.15	CF-SR14 ~	SRMT 14 ~	71E01A05D27A8 ~	SRMT 140620R-MM	ZYL ~	1 ~	FF ~	~	140.00~	3~	3~	3~	6282530
