TESR-M-07 : High-feed modular end mills with SRMT 07 inserts and T-FLEXTEC adaptation

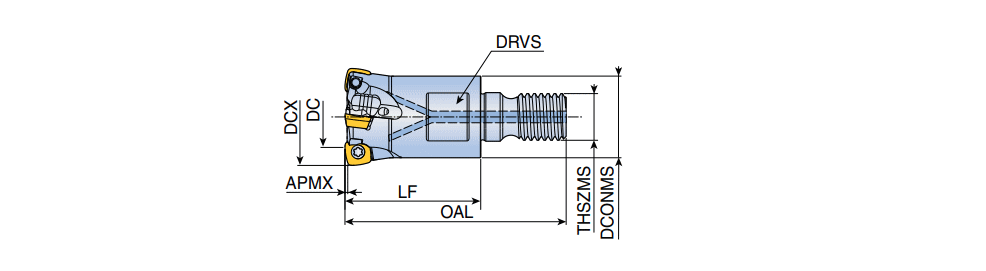

Designation	Tool sty	DCX	DC	CICT	DCONMS	LF	OAL	THSZMS	APMX	DRVS	KAPR	PD		S1	Insert	Rd	Pocket	ClssID	MIID	CCTMS	CCFMS	FF/RN	IIC	LTA	TQ_3	ZEFF	ZEFP	ZNP	GICAT
TESR 216-M08-07	MODULAR ~	16.00	6.60	2	13.00	25.00	42.50	M8	0.70	10.0	0.0~	~	O ~	7.00~	CF-SR07 ~	0.00~	SRMT 07 ~	71E01A05D27A8 ~	SRMT 070310R-M	SAI ~	2 ~	FF ~	~	25.00~	0~	2~	2~	2~	6288911
TESR 320-M10-07	MODULAR ~	20.00	10.70	3	18.00	30.00	50.00	M10	0.70	15.0	0.0~	~	O ~	7.00~	CF-SR07 ~	0.00~	SRMT 07 ~	71E01A05D27A8 ~	SRMT 070310R-M	SAI ~	2 ~	FF ~	~	30.00~	0~	3~	3~	3~	6288912
TESR 425-M12-07	MODULAR ~	25.00	15.50	4	21.00	35.00	57.00	M12	0.70	17.0	0.0~	~	O ~	7.00~	CF-SR07 ~	0.00~	SRMT 07 ~	71E01A05D27A8 ~	SRMT 070310R-M	SAI ~	2 ~	FF ~	~	35.00~	0~	4~	4~	4~	6288913
TESR 532-M16-07	MODULAR ~	32.00	22.60	5	29.00	40.00	65.00	M16	0.70	25.0	0.0~	~	O ~	7.00~	CF-SR07 ~	0.00~	SRMT 07 ~	71E01A05D27A8 ~	SRMT 070310R-M	SAI ~	2 ~	FF ~	~	40.00~	0~	5~	5~	5~	6288914
TESR 640-M16-07	MODULAR ~	40.00	30.70	6	29.00	43.00	68.00	M16	0.70	25.0	0.0~	~	O ~	7.00~	CF-SR07 ~	0.00~	SRMT 07 ~	71E01A05D27A8 ~	SRMT 070310R-M	SAI ~	2 ~	FF ~	~	43.00~	0~	6~	6~	6~	6288915

Matched with T-FLEXTEC holder
