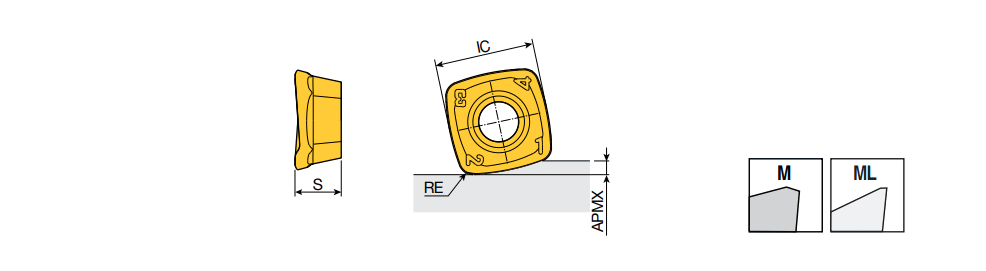

SRMT 07-M : Single-sided 4-corner, high feed milling insert for steel and cast iron

Designation	IC	S	APMX	RE	S1	ap (min)	ap (max)	fz (max)	fz (min)	SF	Insert	CEDC	SC	Pocket	ESP	ClssID	apmax MF	CB	GRDMFG	IIC	WEP	GICAT	GIREM	giic	GICODE	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
SRMT 070310R-M	6.50	3.00	0.70	1.00	7.00~	0.10	0.70	1.500	0.300	~	CF-SR07 ~	4~	S ~	SRMT 07 ~	~	71DD68D301C30 ~	0.00~	M ~	TT2510~	~	0~	6295314		5		TT8080 TT3535 TT9080 TT2510
