TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

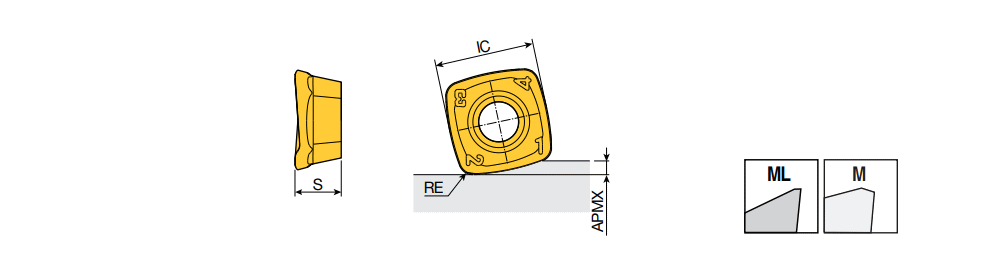

SRMT 10-ML : Single-sided 4-corner, high feed milling insert for stainless steel and difficult to cut materials

Designation	IC	S	APMX	RE	S1	ap (min)	ap (max)	fz (max)	fz (min)	SF	Insert	CEDC	SC	Pocket	ESP	ClssID	apmax MF	CB	GRDMFG	IIC	WEP	GICAT	GIREM	giic	GICODE	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
SRMT 100415R-ML	9.50	4.70	1.00	1.50	10.00~	0.20	1.00	1.500	0.400	~	CF-SR10 ~	4~	S ~	SRMT 10 ~	~	71DD68D301C30 ~	0.00~	ML ~	TT3520~	~	0~	6273950		4		TT8080 TT3535 TT3520 TT9080
