TaeguTec Cutting Tools - Metal Working Tools - Turning -

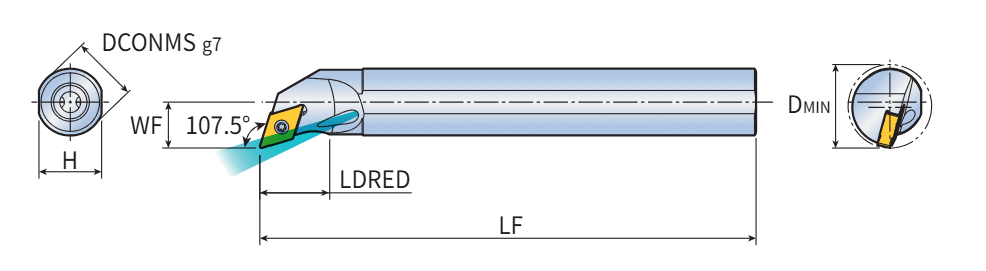

A-SDQNR/L-08 (RHINO-M) : Screw type RHINOMTURN boring bars for mini size DN.X 0803 inserts and internal coolant hole and 107.5° approach angle

Right-hand shown

Designation	DCONMS	H	LF	LDRED	WF	DMIN	IC	S	Kr	KAPR	CL	Tool typ	R/L	ClssID	MIID	IIC	IIC_2	GICAT	GIREM	giic	GICODE
A16Q SDQNL 0803	16.00	15.0	180.00	24.5	11.00	20.00	9.52~	4.76~	15~	108.0~	SCREW ~	BORING BAR ~	L ~	71E01A0E9CBA9 ~	DNMX 080304 FGP	~	~	6234553		0
A16Q SDQNR 0803	16.00	15.0	180.00	24.5	11.00	20.00	9.52~	4.76~	15~	108.0~	SCREW ~	BORING BAR ~	R ~	71E01A0E9CBA9 ~	DNMX 080304 FGP	~	~	6234552		0
