TaeguTec Cutting Tools - Metal Working Tools - Parting & Grooving -

TSA (PCD) : T-CLAMP single-ended single-ended PCD inserts for turning and grooving

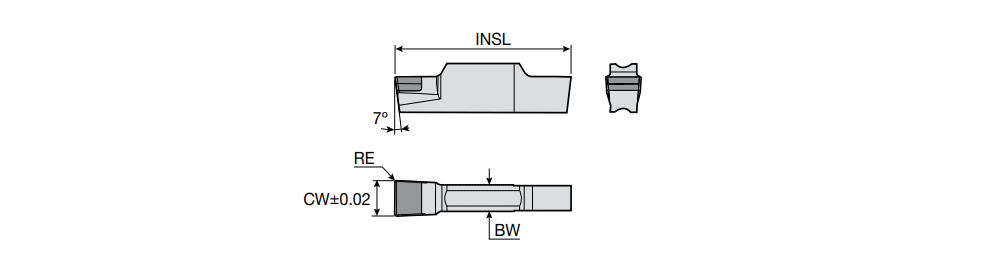

Designation	SSC	CW	RE	BW	INSL	AN	ap (min)	ap (max)	ft (min)	ft (max)	fg (min)	fg (max)	CB1	W+-toler	R/L	ClssID	CEDC	COATP	CBMD	GRDMFG	IIC	GICAT	giic	Grade & Vc Click on grade for cutting speed value
TSA 2.00-0.20	2	2.00	0.20	1.70	20.00	7.0	0.20	1.20	0.10	0.22	0.07	0.13	~	0.00~	~	71DDA089C8D1E ~	1~	PCD ~	A ~	TD1020~	~	6281845	1	TD1020
TSA 3.00-0.20	3	3.00	0.20	2.25	20.00	7.0	0.20	1.80	0.12	0.25	0.08	0.14	~	0.00~	~	71DDA089C8D1E ~	1~	PCD ~	A ~	TD1020~	~	6281846	1	TD1020
TSA 4.00-0.20	4	4.00	0.20	3.00	20.00	7.0	0.50	2.40	0.14	0.31	0.10	0.20	~	0.00~	~	71DDA089C8D1E ~	1~	PCD ~	A ~	TD1020~	~	6281847	1	TD1020
TSA 5.00-0.20	5	5.00	0.20	4.00	25.00	7.0	0.50	3.00	0.16	0.34	0.11	0.23	~	0.00~	~	71DDA089C8D1E ~	1~	PCD ~	A ~	TD1020~	~	6281848	1	TD1020
TSA 6.00-0.20	6	6.00	0.20	5.00	25.00	7.0	0.50	3.60	0.19	0.41	0.11	0.20	~	0.00~	~	71DDA089C8D1E ~	1~	PCD ~	A ~	TD1020~	~	6281849	1	TD1020
