TaeguTec Cutting Tools - Metal Working Tools - Turning -

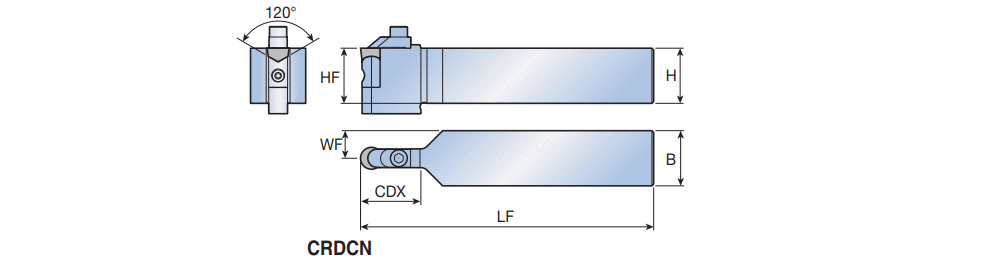

CRDCN-T : Narrow top clamp type holders with 45° approach angle for positive Round Ceramic inserts of V bottom shap

Designation	H	HF	B	LF	CDX	WF	IC	t	Kr	KAPR	CL	Tool typ	HAND	ClssID	MIID	IIC	GICAT	GIREM	giic	GICODE
CRDCN 3232 P0907-120-T30	32.0	32.0	32.0	170.00	30.00	16.00	9.52~	7.94~	0~	0.0~	Top Clamp ~	SQUARE ~	~	71E01A0E85121 ~	RCGX 090700 T2	~	6193647		0
CRDCN 3232 P1207-120-T35	32.0	32.0	32.0	170.00	35.00	16.00	12.70~	7.94~	0~	0.0~	Top Clamp ~	SQUARE ~	~	71E01A0E85121 ~	RCGX 120700-CE	~	6193648		0
