TaeguTec Cutting Tools - Metal Working Tools - Hole Making -

TCD ...-G+ : DRILLRUSH Exchangeable drill heads for structural steel

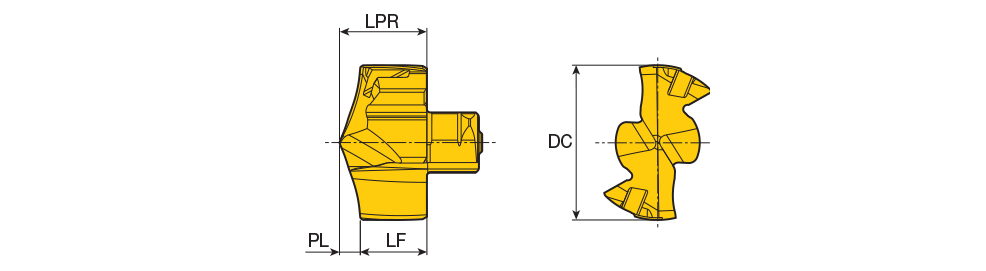

Designation	S1	DC	LPR	PL	LF	SSC	CB	Min Tol	Max Tol	SC	a	SIG	ClssID	GRDMFG	IIC	GICAT	giic	Grade & Vc Click on grade for cutting speed value
TCD-140-G+	0.00~	0.00	7.90	1.89	6.01	14	G+ ~	0~	0~	~	0~	0~	72550E1361C6C ~	TT9080~	~	6271477	1	TT9080
TCD-141-G+	0.00~	0.00	7.90	1.90	6.00	14	G+ ~	0~	0~	~	0~	0~	72550E1361C6C ~	TT9080~	~	6271463	1	TT9080
TCD-145-G+	0.00~	0.00	7.90	1.92	5.98	14	G+ ~	0~	0~	~	0~	0~	72550E1361C6C ~	TT9080~	~	6271478	1	TT9080
TCD-150-G+	0.00~	0.00	8.50	2.02	6.48	15	G+ ~	0~	0~	~	0~	0~	72550E1361C6C ~	TT9080~	~	6271479	1	TT9080
TCD-155-G+	0.00~	0.00	8.50	2.05	6.45	15	G+ ~	0~	0~	~	0~	0~	72550E1361C6C ~	TT9080~	~	6271480	1	TT9080
TCD-160-G+	0.00~	0.00	9.00	2.15	6.85	16	G+ ~	0~	0~	~	0~	0~	72550E1361C6C ~	TT9080~	~	6271481	1	TT9080
TCD-165-G+	0.00~	0.00	9.00	2.18	6.82	16	G+ ~	0~	0~	~	0~	0~	72550E1361C6C ~	TT9080~	~	6271482	1	TT9080
TCD-170-G+	0.00~	0.00	9.50	2.29	7.21	17	G+ ~	0~	0~	~	0~	0~	72550E1361C6C ~	TT9080~	~	6271483	1	TT9080
TCD-175-G+	0.00~	0.00	9.50	2.32	7.18	17	G+ ~	0~	0~	~	0~	0~	72550E1361C6C ~	TT9080~	~	6263505	1	TT9080
TCD-177-G+	0.00~	0.00	9.50	2.33	7.17	17	G+ ~	0~	0~	~	0~	0~	72550E1361C6C ~	TT9080~	~	6263371	1	TT9080
TCD-180-G+	0.00~	0.00	10.10	2.42	7.68	18	G+ ~	0~	0~	~	0~	0~	72550E1361C6C ~	TT9080~	~	6256515	1	TT9080
TCD-185-G+	0.00~	0.00	10.10	2.45	7.65	18	G+ ~	0~	0~	~	0~	0~	72550E1361C6C ~	TT9080~	~	6271484	1	TT9080
TCD-190-G+	0.00~	0.00	10.70	2.56	8.14	19	G+ ~	0~	0~	~	0~	0~	72550E1361C6C ~	TT9080~	~	6271485	1	TT9080
TCD-195-G+	0.00~	19.50	10.70	2.59	8.11	19	G+ ~	0~	0~	~	0~	0~	72550E1361C6C ~	TT9080~	~	6271486	1	TT9080
