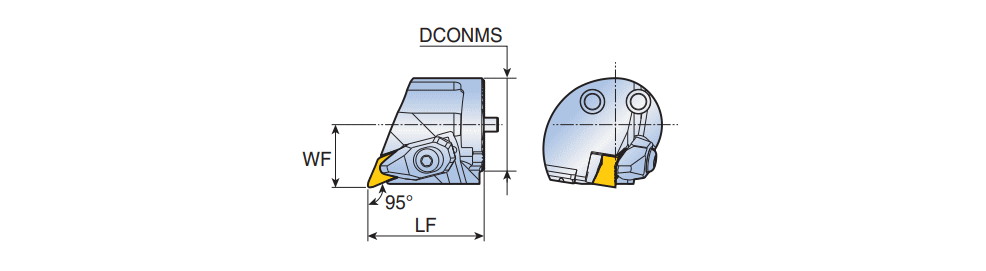

QH-TZQNR-TB : Exchangeable boring heads with negative 80° Trigon inserts & 95° approach angle for anti-vibration deep boring

Designation	DCONMS	LF	WF		HAND	IC	S	Kr	K	CL	Tool typ	ClssID	MIID	CCTMS	CCFMS	LTA	IIC	GICAT	GIREM	giic	GICODE
QH40-TZQNR-1410-TB	40.00	50.00	27.00	~	~	10.50~	10.00~	0~	0.0~	~	~	~	ZNMV 1410	~	~	0.00~	~	6289304		0

When applying 50mm shank, Dmin for the assembly is 60mm.
When applying 60mm shank, Dmin for the assembly is 70mm.
