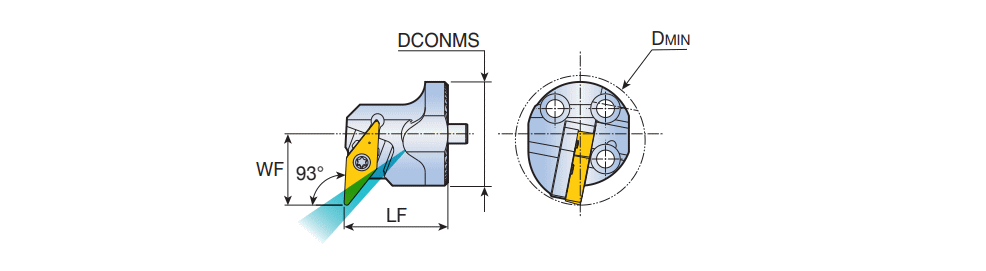

QH-LVUBR : Exchangeable screw type boring heads with 35° VBMT 1604.. inserts & 93° approach angle for anti-vibration deep boring


  DesignationDCONMS LF WF DMIN  HAND d t Kr K CL Tool typ ClssID MIID CCTMS CCFMS LTA IIC GICATGIREMgiicGICODE
  QH32-LVUBR-16 32.0032.0022.0040.00O ~R ~9.52~6.35~0~93.0~SCREW ~ADAPTER ~71E01A0E9CBA9 ~VBMT 160408 MT CMS ~01 ~0.00~ ~6296134 0
  QH40-LVUBR-16 40.0032.0027.0050.00O ~R ~9.52~6.35~0~93.0~SCREW ~ADAPTER ~71E01A0E9CBA9 ~VBMT 160408 MT CMS ~01 ~0.00~ ~6296135 0
When applying 50mm shank, Dmin for the assembly is 60mm.
When applying 60mm shank, Dmin for the assembly is 70mm.
