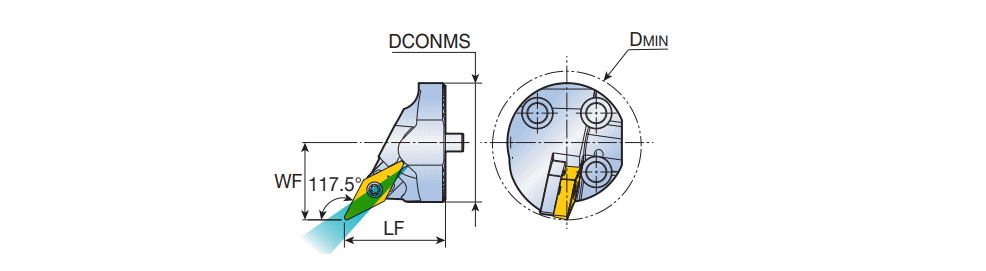

QH-LVPBR : Exchangeable screw type boring heads with VBMT 1604.. in serts & 117.5 approach angle for anti-vibration deep boring


  DesignationDCONMS LF WF DMIN  HAND d t Kr K CL Tool typ ClssID MIID CCTMS CCFMS LTA IIC GICATGIREMgiicGICODE
  QH32-LVPBR-16 32.0034.0020.0040.00O ~R ~9.52~4.76~25~117.5~SCREW ~ADAPTER ~71E01A0E9CBA9 ~VBMT 160408 MT CMS ~01 ~0.00~ ~6296136 0
  QH40-LVPBR-16 40.0034.0026.0050.00O ~R ~9.52~4.76~25~117.5~SCREW ~ADAPTER ~71E01A0E9CBA9 ~VBMT 160408 MT CMS ~01 ~0.00~ ~6296137 0
When applying 50mm shank, Dmin for the assembly is 60mm.
When applying 60mm shank, Dmin for the assembly is 70mm.
