TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

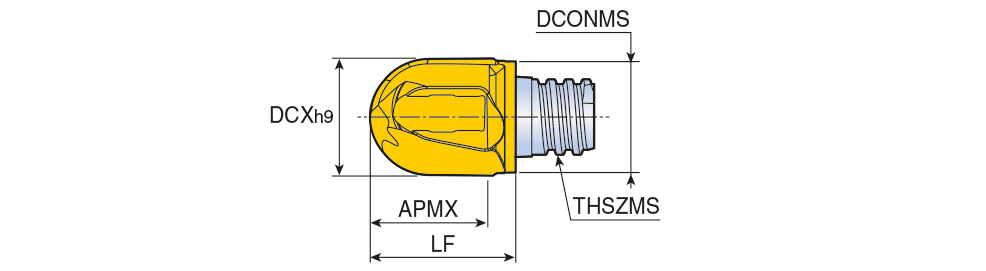

MXBB-BM : Interchangeable solid carbide 2 flute, ball nose milling heads

Designation	Tool sty	DCX	NOF	APMX	THSZMS	DCONMS	LF	H.A	Rd	ClssID	CCTMS	CCFMS	GRDMFG	ISYC	LPR	LTA	GICAT	giic	Grade & Vc Click on grade for cutting speed value
MXBB080L08-BM-02S05	HEAD TYPE ~	8.00	2	7.80	T05	7.60	9.95	0.0~	0.00~	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-06 ~	0.00~	0.00~	6290263	1	TT5523
MXBB100L10-BM-02S06	HEAD TYPE ~	10.00	2	10.00	T06	9.50	12.35	0.0~	0.00~	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-06 ~	0.00~	0.00~	6290265	1	TT5523
MXBB120L12-BM-02S08	HEAD TYPE ~	12.00	2	11.45	T08	11.50	15.30	0.0~	0.00~	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-06 ~	0.00~	0.00~	6290266	1	TT5523
MXBB160L16-BM-02S10	HEAD TYPE ~	16.00	2	15.80	T10	15.20	19.10	0.0~	0.00~	71E01A05D27A8 ~	SAI ~	01 ~	TT5523~	303-06 ~	0.00~	0.00~	6290267	1	TT5523

Wrench should be ordered separately
Do not apply lubricant to the threaded connection.
