TBTA5....DE4 : Deep double tube drills with outer 4 start thread and cartridges covering dia 107-168.99 mm

Outer four start thread

Outer four start thread
 DR COOLANT-TOP/TDR/TND/HFD

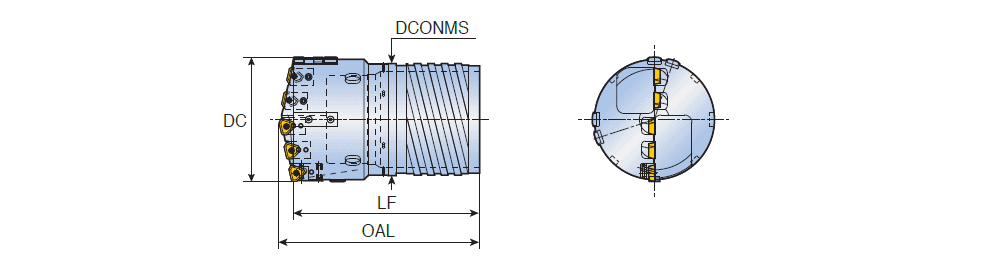

  DesignationDCN DCX LF OAL DCONMS Outer Inner Tube dia CBMD  Machines L1 CICT GICATGIREMgiicGICODE
  TBTA5-107.0-111.99DE4-094 107.00111.99180.00197.0089.00BTDO 094 BTDI 078 94.0 ~ ~ ~0.0~5~6211663 0
  TBTA5-112.0-123.99DE4-106 112.00123.99205.00221.00101.00BTDO 106 BTDI 090 106.0 ~ ~ ~0.0~5~6211664 0
  TBTA5-124.0-135.99DE4-118 124.00135.99205.00222.00113.00BTDO 118 BTDI 092 118.0 ~ ~ ~0.0~5~6211665 0
  TBTA5-136.0-147.99DE4-130 136.00147.99205.00223.00125.00BTDO 130 BTDI 093 130.0 ~ ~ ~0.0~5~6211666 0
  TBTA5-148.0-159.99DE4-142 148.00159.99225.00245.00137.00BTDO 142 BTDI 094 142.0 ~ ~ ~0.0~5~6211667 0
  TBTA5-160.0-168.99DE4-154 160.00168.99225.00246.00149.00BTDO 154 BTDI 095 154.0 ~ ~ ~0.0~5~6211668 0
