TBTA7....SE4 : Deep single tube drills with outer 4 start thread and cartridges covering dia 169-232.99 mm
Outer four start thread
Double tube system also available on request

Outer four start thread
Double tube system also available on request

 DR COOLANT-TOP/TDR/TND/HFD

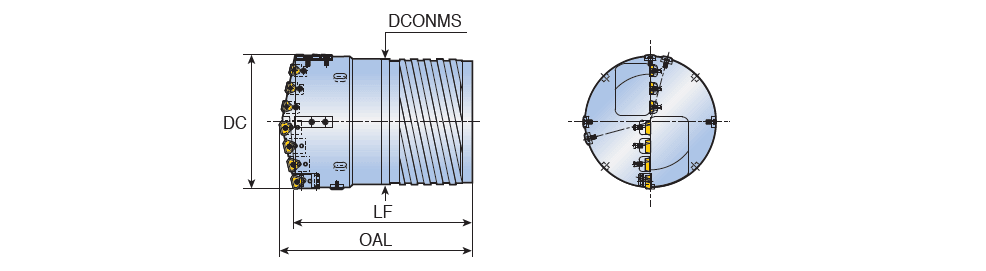

  DesignationDCN DCX LF OAL DCONMS Tube Tube dia CBMD  Machines CICT IIC GICATGIREMgiicGICODE
  TBTA7-169.0-171.99SE4-154 169.00171.99225.00246.00149.00BTSI 154 154.0 ~ ~ ~7~IS$$2283047437012992 ~6211608 0
  TBTA7-172.0-183.99SE4-166 172.00183.99225.00247.00161.00BTSI 166 166.0 ~ ~ ~7~ ~6211609 0
  TBTA7-184.0-195.99SE4-178 184.00195.99245.00267.00173.00BTSI 178 178.0 ~ ~ ~7~ ~6211610 0
  TBTA7-196.0-207.99SE4-190 196.00207.99245.00270.00185.00BTSI 190 190.0 ~ ~ ~7~IS$$2283047437012992 ~6211611 0
  TBTA7-208.0-219.99SE4-202 208.00219.99245.00271.00197.00BTSI 202 202.0 ~ ~ ~7~IS$$2283047437012992 ~6211612 0
  TBTA7-220.0-231.99SE4-214 220.00231.99265.00293.00208.00BTSI 214 214.0 ~ ~ ~7~IS$$2283047437012992 ~6211613 0
  TBTA7-232.0-232.99SE4-226 232.00232.99265.00293.00220.00BTSI 226 226.0 ~ ~ ~7~IS$$2283047437012992 ~6211614 0
