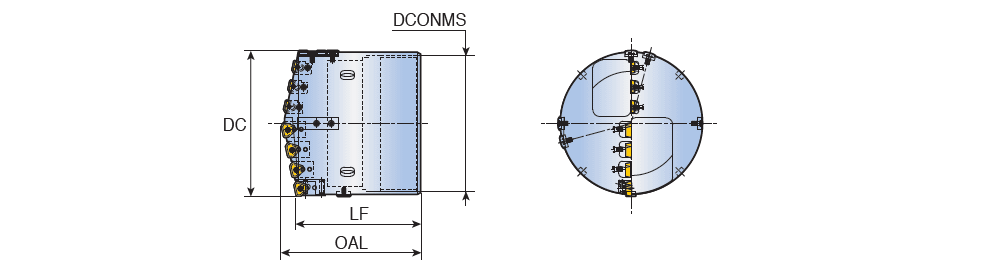

TBTA7....SI1 : Deep single tube drills with inner 1 start thread and cartridges covering dia 169-232.99 mm

Inner single start thread

Inner single start thread
 DR COOLANT-TOP/TDR/TND/HFD
  DesignationDCN DCX LF OAL DCONMS Tube Tube dia CBMD  Machines L1 CICT IIC GICATGIREMgiicGICODE
  TBTA7-169.0-173.99SI1-154 169.00173.99190.00211.00151.00BTSE 154 154.0 ~ ~ ~0.0~7~ ~6211639 0
  TBTA7-174.0-185.99SI1-166 174.00185.99190.00213.00163.00BTSE 166 166.0 ~ ~ ~0.0~7~ ~6211640 0
  TBTA7-186.0-197.99SI1-178 186.00197.99190.00212.00175.00BTSE 178 178.0 ~ ~ ~0.0~7~ ~6211641 0
  TBTA7-198.0-209.99SI1-190 198.00209.99190.00215.00187.00BTSE 190 190.0 ~ ~ ~0.0~7~IS$$2283047437012992 ~6211642 0
  TBTA7-210.0-221.99SI1-202 210.00221.99190.00217.00199.00BTSE 202 202.0 ~ ~ ~0.0~7~IS$$2283047437012992 ~6211643 0
  TBTA7-222.0-232.99SI1-214 222.00232.99190.00218.00211.00BTSE 214 214.0 ~ ~ ~0.0~7~IS$$2283047437012992 ~6211644 0
