TaeguTec Cutting Tools - Metal Working Tools - Boring System -

C-MB : MB modular boring system connection with CAMFIX (ISO 26623-1 standard) exchangeable, tapered shanks.

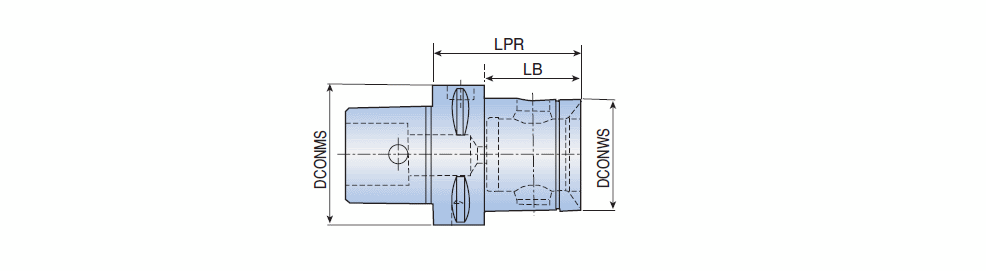

Designation	DCONMS	DCONWS	LPR	LB		ClssID	LTA	GICAT
C5 MB50X55	50.00	50.00	55.00	-	0.00	71EAD3871D313 ~	0.00~	6194643
C6 MB50X67	63.00	50.00	67.00	45.00	1.90	71EAD3871D313 ~	0.00~	6120652
C6 MB63X77	63.00	63.00	77.00	-	2.40	71EAD3871D313 ~	0.00~	6120653
C8 MB63X70	80.00	63.00	70.00	39.00	2.90	71EAD3871D313 ~	70.00~	6120651

Please verify that the weight of the entire tool assembly does not exceed the machine spindle's carrying capability.
