TaeguTec Cutting Tools - Metal Working Tools - Turning -

SNMA : Negative Square inserts without chip former for cast iron & short-chipped materials

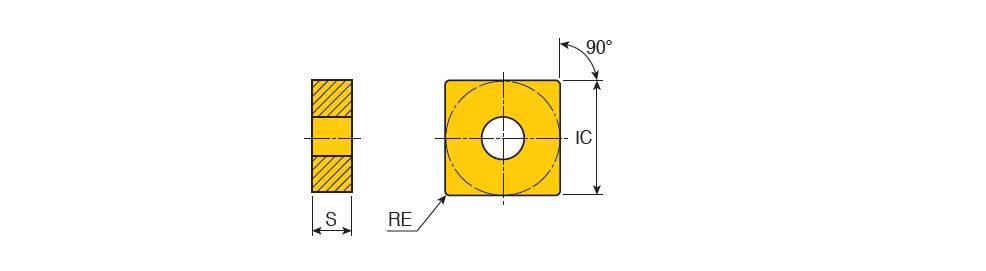

Designation	IC	S	RE	l	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	SC	ClssID	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
SNMA 120408	12.70	4.76	0.80	12.70~	90~	0.00~	1.00	6.00	0.15	0.70	8~	~	U ~	S ~	71DD68D829217 ~	CVD ~	K10 ~	2~	~	~	SNMA ~	~	12 ~	6277575	5	K10 TT7015 TT7005 TT7105 TT7115(TT7015B)
SNMA 120412	12.70	4.76	1.20	12.70~	90~	0.00~	1.50	6.00	0.20	0.80	8~	~	U ~	S ~	71DD68D829217 ~	CVD ~	TT7005~	2~	~	~	SNMA ~	~	12 ~	6277617	3	TT7015 TT7005 TT7115(TT7015B)
SNMA 120416	12.70	4.76	1.60	12.70~	90~	0.00~	2.00	6.00	0.30	1.00	8~	~	U ~	S ~	71DD68D829217 ~	CVD ~	TT7005~	2~	~	~	SNMA ~	~	12 ~	6277643	4	TT7015 TT7005 TT7105 TT7115(TT7015B)
SNMA 150612	15.88	6.35	1.20	15.88~	90~	0.00~	0.80	4.00	0.10	0.25	8~	~	U ~	S ~	71DD68D829217 ~	CVD ~	TT7005~	2~	~	~	SNMA ~	~	12 ~	6277521	2	TT7005 TT7105
SNMA 150616	15.88	6.35	1.60	15.88~	90~	0.00~	2.00	8.00	0.30	1.00	8~	~	U ~	S ~	71DD68D829217 ~	CVD ~	TT7105~	2~	~	~	SNMA ~	~	12 ~	6273792	1	TT7105
SNMA 190612	19.05	6.35	1.20	19.05~	90~	0.00~	2.00	10.00	0.20	0.80	8~	~	U ~	S ~	71DD68D829217 ~	CVD ~	TT7005~	2~	~	~	SNMA ~	~	12 ~	6277687	3	TT7015 TT7005 TT7115(TT7015B)
SNMA 190616	19.05	6.35	1.60	19.05~	90~	0.00~	2.00	10.00	0.30	1.00	8~	~	U ~	S ~	71DD68D829217 ~	CVD ~	TT7005~	2~	~	~	SNMA ~	~	12 ~	6277696	3	TT7015 TT7005 TT7115(TT7015B)
SNMA 250724	25.40	7.94	2.40	25.40~	90~	0.00~	3.00	13.00	0.40	1.20	8~	~	U ~	S ~	71DD68D829217 ~	CVD ~	TT7015~	2~	ISO$SN2507242NA$$24 ~	856 ~	SNMA ~	Y ~	25 ~	5523866	1	TT7015
SNMA 250924	25.40	9.52	2.40	25.40~	90~	0.00~	3.00	13.00	0.40	1.20	8~	~	U ~	S ~	71DD68D829217 ~	CVD ~	TT7015~	2~	ISO$SN2509242NA$$24 ~	866 ~	SNMA ~	Y ~	25 ~	5523633	1	TT7015
