TaeguTec Cutting Tools - Metal Working Tools - Turning -

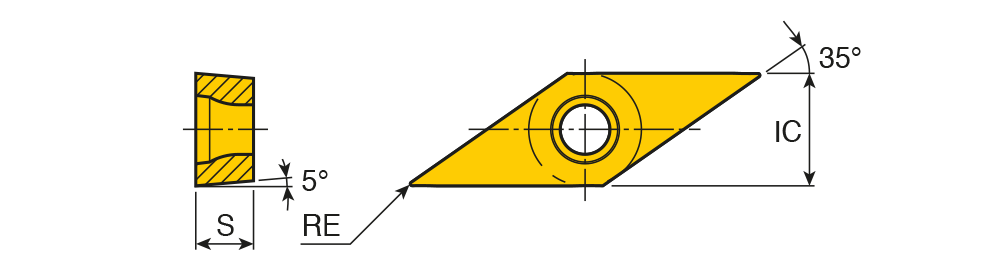

VBGT-FGS : Positive periphery ground 35° Rhombic inserts for finishing of heat resistant super alloys with 5° clearance angle and sharp cutting edges of excellent chip control

Designation	IC	S	RE	D1	l	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	SC	ClssID	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
VBGT 160404 FGS	9.52	4.76	0.40	0.00~	16.60~	FGS ~	35~	5.00~	0.20	2.50	0.03	0.20	2~	P ~	~	V ~	71DD68D301C30 ~	CVD ~	K10 ~	3~	ISO$VB1604043NB$$04 ~	331 FG ~	VBGT ~	Y ~	16 ~	6318928	4	TT3020 TT3010 TT3005 K10
VBGT 160408 FGS	9.52	4.76	0.80	0.00~	16.60~	FGS ~	35~	5.00~	0.30	2.50	0.05	0.20	2~	P ~	~	V ~	71DD68D301C30 ~	CVD ~	K10 ~	3~	ISO$VB1604083NB$$08 ~	332 FG ~	VBGT ~	Y ~	16 ~	6318929	4	TT3020 TT3010 TT3005 K10
VBGT 160412 FGS	9.52	4.76	1.20	0.00~	16.60~	FGS ~	35~	5.00~	0.30	2.50	0.07	0.20	2~	P ~	~	V ~	71DD68D301C30 ~	CVD ~	K10 ~	3~	ISO$VB1604123NB$$12 ~	333 FG ~	VBGT ~	Y ~	16 ~	6318930	4	TT3020 TT3010 TT3005 K10
