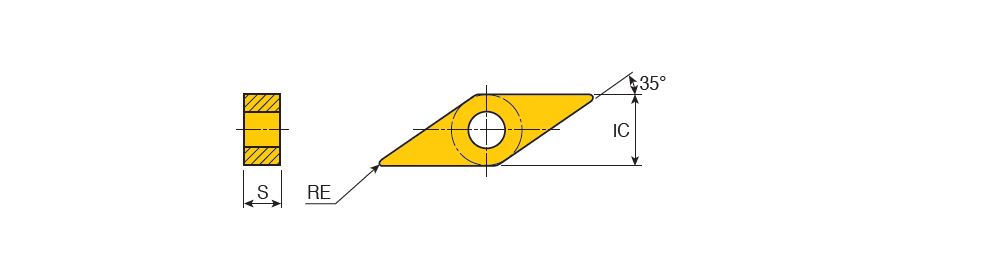

VNMG : Negative 35° Rhombic inserts for medium machining of steels & cast irons

Designation	IC	S	RE	l	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	SC	ClssID	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
VNMG 160404	9.52	4.76	0.40	0.00~	MG- ~	0~	0.00~	1.00	3.00	0.17	0.40	4~	~	~	~	71DD68D301C30 ~	Cermet ~	8115B ~	0~	~	~	~	~	16 ~	6277715	8	TT5100 TT8125B TT8115B TT7015 TT7005 TT7105 CT3000 TT7115(TT7015B)
VNMG 160408	9.52	4.76	0.80	0.00~	MG- ~	0~	0.00~	1.50	3.00	0.17	0.50	4~	~	~	~	71DD68D301C30 ~	CVD ~	8115B ~	0~	~	~	~	~	16 ~	6277691	7	TT5100 TT8125B TT8115B TT7015 TT7005 TT7105 TT7115(TT7015B)
VNMG 160412	9.52	4.76	1.20	0.00~	MG- ~	0~	0.00~	1.50	3.00	0.20	0.50	4~	~	~	~	71DD68D301C30 ~	CVD ~	8115B ~	0~	~	~	~	~	16 ~	6296318	7	TT9080 TT8125B TT8115B TT7015 TT7005 TT7105 TT7115(TT7015B)
VNMG 220408	12.70	4.76	0.80	0.00~	MG- ~	0~	0.00~	1.50	3.50	0.17	0.50	4~	~	~	~	71DD68D301C30 ~	CVD ~	8125B ~	0~	~	~	~	~	22 ~	6241357	2	TT8125B TT7115(TT7015B)

Click the Better Suggestions icon to see more choices.
