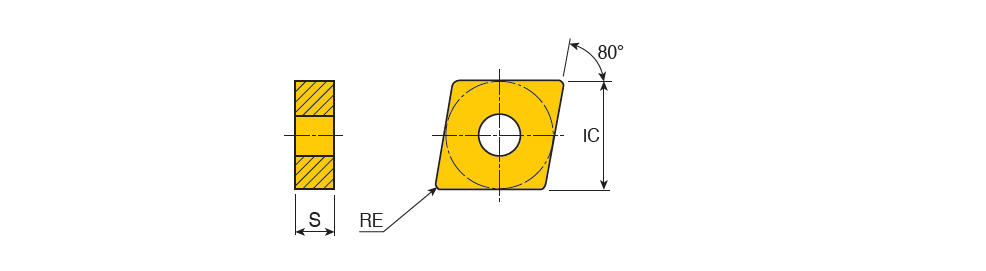

CNMG- (RHINO) : Negative 80° Rhombic RHINOTURN inserts for medium rough machining of cast irons

Designation	IC	S	RE	CBMD	alpha	AN	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	l	SC	ClssID	RHINO	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
CNMG 090404	9.52	4.76	0.40	MG- ~	0~	0.00~	0.50	3.00	0.10	0.45	4~	~	~	0.00~	~	71DD68D301C30 ~	~	CVD ~	TT7005~	0~	~	~	~	~	9 ~	6277728	4	TT7015 TT7005 TT7105 TT7115(TT7015B)
CNMG 090408	9.52	4.76	0.80	MG- ~	0~	0.00~	0.50	3.00	0.10	0.50	4~	~	~	0.00~	~	71DD68D301C30 ~	~	CVD ~	TT7005~	0~	~	~	~	~	9 ~	6277683	3	TT7005 TT7105 TT7115(TT7015B)
CNMG 090412	9.52	4.76	1.20	MG- ~	0~	0.00~	0.50	3.00	0.10	0.55	4~	~	~	0.00~	~	71DD68D301C30 ~	~	CVD ~	TT7005~	0~	~	~	~	~	9 ~	6277743	3	TT7015 TT7005 TT7115(TT7015B)
