TaeguTec Cutting Tools - Metal Working Tools - Turning -

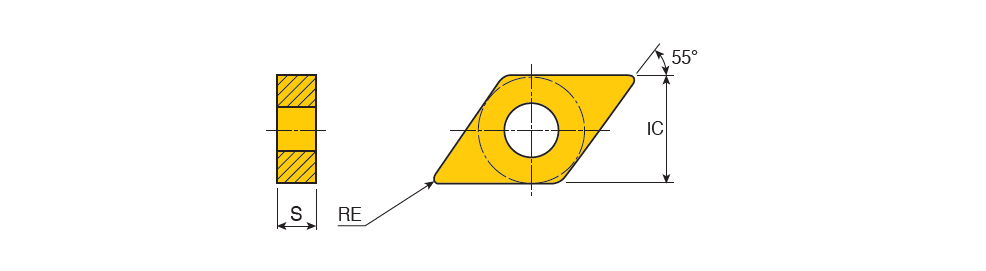

DNMG : Negative 55° Rhombic inserts for medium rough machining of steels & cast irons

Designation	IC	S	RE	l	CBMD	alpha	ap (min)	ap (max)	ft (min)	ft (max)	CEDC	Precise	Utility	SC	ClssID	AN	COATP	GRDMFG	IFS	IIC	INSI	INST	ISO STD	SSC	GICAT	giic	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
DNMG 150404	12.70	4.76	0.40	15.10~	MG- ~	55~	1.00	4.00	0.17	0.45	4~	~	U ~	D ~	71DD68D301C30 ~	0.0~	CVD ~	8125B ~	2~	~	~	DNMG ~	Y ~	15 ~	6298927	4	TT8125B TT7015 TT7005 TT7115(TT7015B)
DNMG 150408	12.70	4.76	0.80	14.70~	MG- ~	55~	1.50	4.00	0.17	0.55	4~	~	U ~	D ~	71DD68D301C30 ~	0.0~	CVD ~	8115B ~	2~	~	~	DNMG ~	~	15 ~	6277581	7	TT5100 TT8125B TT8115B TT7015 TT7005 TT7105 TT7115(TT7015B)
DNMG 150412	12.70	4.76	1.20	15.50~	MG- ~	55~	1.50	4.00	0.25	0.55	4~	~	U ~	D ~	71DD68D301C30 ~	0.0~	CVD ~	TT5100~	2~	~	~	DNMG ~	~	15 ~	6298928	4	TT5100 TT7005 TT7105 TT7115(TT7015B)
DNMG 150416	12.70	4.76	1.60	15.50~	MG- ~	55~	2.50	4.00	0.25	0.65	4~	~	U ~	D ~	71DD68D301C30 ~	0.0~	CVD ~	TT5100~	2~	ISO$DN1504162NB$$16 ~	434 ~	DNMG ~	Y ~	15 ~	5515037	1	TT5100
DNMG 150604	12.70	6.35	0.40	15.10~	MG- ~	55~	1.00	4.00	0.17	0.45	4~	~	U ~	D ~	71DD68D301C30 ~	0.0~	Cermet ~	8115B ~	2~	~	~	DNMG ~	~	15 ~	6277750	9	TT8135B TT5100 TT8125B TT8115B TT7015 TT7005 TT7105 CT3000 TT7115(TT7015B)
DNMG 150608	12.70	6.35	0.80	15.50~	MG- ~	55~	1.50	4.00	0.17	0.55	4~	~	U ~	D ~	71DD68D301C30 ~	0.0~	CVD ~	8115B ~	2~	~	~	DNMG ~	~	15 ~	6277686	9	TT5100 TT8125B TT8115B K20 TT7025 TT7015 TT7005 TT7105 TT7115(TT7015B)
DNMG 150612	12.70	6.35	1.20	14.40~	MG- ~	55~	1.50	4.00	0.25	0.55	4~	~	U ~	D ~	71DD68D301C30 ~	0.0~	CVD ~	8115B ~	2~	~	~	DNMG ~	~	15 ~	6298936	8	TT5100 TT8125B TT8115B K20 TT7015 TT7005 TT7105 TT7115(TT7015B)
DNMG 150616	12.70	6.35	1.60	15.50~	MG- ~	55~	2.50	4.00	0.25	0.65	4~	~	U ~	D ~	71DD68D301C30 ~	0.0~	CVD ~	8115B ~	2~	~	~	DNMG ~	~	15 ~	6277572	3	TT8115B TT7015 TT7115(TT7015B)

Click the Better Suggestions icon to see more choices.
