TaeguTec Cutting Tools - Metal Working Tools - Parting & Grooving -

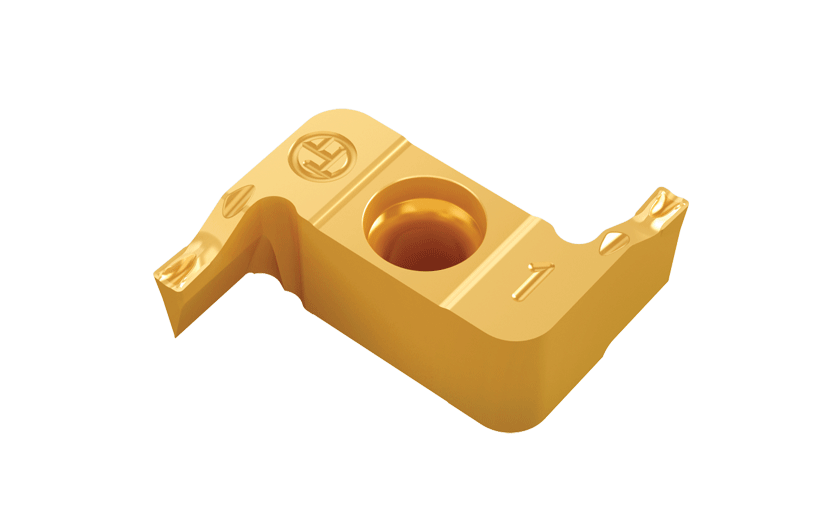

TDFX-R/L (FACE-R) : Screw type double-ended inserts with rigid & anti-rotating design for face grooving, turning & multiple applications

DAXX : No limit

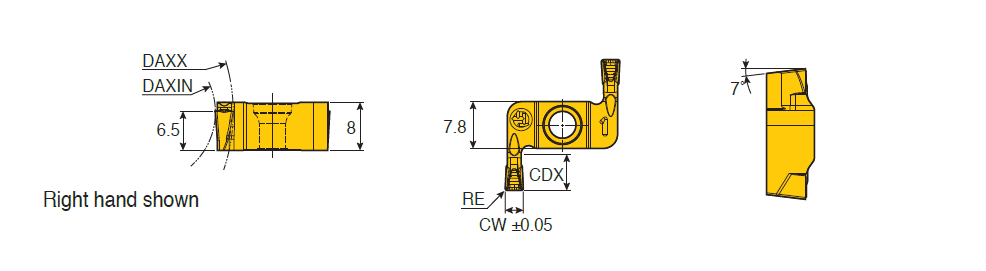

Designation	CW	RE	CDX	DAXIN	DAXX	HAND	CWTOL	SC	R	ap (min)	ap (max)	ft (min)	ft (max)	fg (min)	fg (max)	CB1	W	W+-toler	ClssID	CEDC	COATP	CBMD	GRDMFG	IIC	GICAT	giic	Grade & Vc Click on grade for cutting speed value
TDFX 2E-0.3-D25L	2.00	0.30	6.00	25.0	-	L ~	0.000~	~	0.000~	0.40	1.20	0.12	0.18	0.03	0.20	~	0.00~	0.00~	71DDA089C8D1E ~	2~	PVD ~	FX ~	TT9080~	IS$$235523839664672 ~	6244726	1	TT9080
TDFX 2E-0.3-D25R	2.00	0.30	6.00	25.0	-	R ~	0.000~	~	0.000~	0.40	1.20	0.12	0.18	0.03	0.20	~	0.00~	0.00~	71DDA089C8D1E ~	2~	PVD ~	FX ~	TT9080~	IS$$235405969722084 ~	6304700	1	TT9080
TDFX 3E-0.3-D24L	3.00	0.30	6.00	24.0	-	L ~	0.000~	~	0.000~	0.40	1.80	0.15	0.20	0.07	0.20	~	0.00~	0.00~	71DDA089C8D1E ~	2~	PVD ~	FX ~	TT9080~	IS$$235523839664672 ~	6311285	1	TT9080
TDFX 3E-0.3-D24R	3.00	0.30	6.00	24.0	-	R ~	0.000~	~	0.000~	0.40	1.80	0.15	0.20	0.07	0.20	~	0.00~	0.00~	71DDA089C8D1E ~	2~	PVD ~	FX ~	TT9080~	IS$$235405969722084 ~	6305476	1	TT9080
TDFX 4E-0.4-D32L	4.00	0.40	6.00	32.0	-	L ~	0.000~	~	0.000~	0.50	2.40	0.15	0.24	0.09	0.25	~	0.00~	0.00~	71DDA089C8D1E ~	2~	PVD ~	FX ~	TT9080~	IS$$235523839664672 ~	6311286	1	TT9080
TDFX 4E-0.4-D32R	4.00	0.40	6.00	32.0	-	R ~	0.000~	~	0.000~	0.50	2.40	0.15	0.24	0.09	0.25	~	0.00~	0.00~	71DDA089C8D1E ~	2~	PVD ~	FX ~	TT9080~	IS$$235405969722084 ~	6310657	1	TT9080
