TaeguTec Cutting Tools - Metal Working Tools - Hole Making -

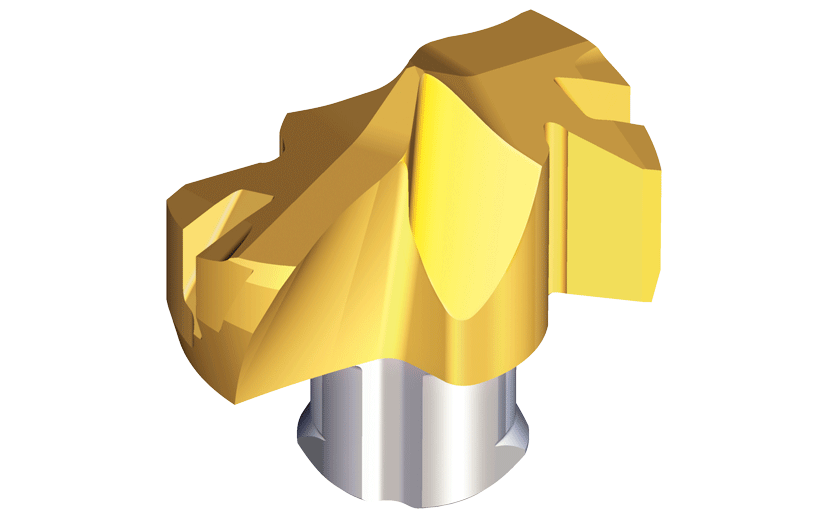

TCD ...P-CO+ : Exchangeable Self-Centering drill heads for Indexable modular drill heads of large diameter

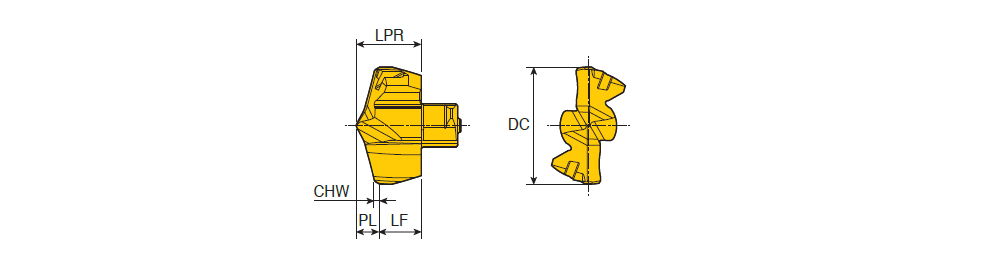

Designation	DC	LPR	PL	LF	CHW	SSC	CB	Min Tol	Max Tol	SC	a	SIG	ClssID	GRDMFG	IIC	GICAT	giic	Grade & Vc Click on grade for cutting speed value
TCD-159-P-CO+	15.90	8.73	3.17	5.56	0.70	15	CO+ ~	0~	0~	~	155~	0~	72550E1361C6C ~	TT9080~	IS$$119617808834768 ~	6186961	1	TT9080
TCD-169-P-CO+	16.90	9.30	3.34	5.96	0.70	16	CO+ ~	0~	0~	~	155~	0~	72550E1361C6C ~	TT9080~	IS$$159490504392000 ~	6314067	1	TT9080
TCD-179-P-CO+	17.90	9.90	3.50	6.40	0.70	17	CO+ ~	0~	0~	~	155~	0~	72550E1361C6C ~	TT9080~	IS$$159490554907824 ~	6314068	1	TT9080
TCD-189-P-CO+	18.90	10.50	3.66	6.84	0.70	18	CO+ ~	0~	0~	~	155~	0~	72550E1361C6C ~	TT9080~	IS$$119618042470480 ~	6186962	1	TT9080
TCD-199-P-CO+	19.90	11.00	3.82	7.18	0.70	19	CO+ ~	0~	0~	~	155~	0~	72550E1361C6C ~	TT9080~	IS$$39872758702144 ~	6314069	1	TT9080
TCD-209-P-CO+	20.90	11.60	3.98	7.62	0.70	20	CO+ ~	0~	0~	~	155~	0~	72550E1361C6C ~	TT9080~	IS$$39872771331121 ~	6314058	1	TT9080
TCD-219-P-CO+	21.90	12.18	4.15	8.03	0.70	21	CO+ ~	0~	0~	~	155~	0~	72550E1361C6C ~	TT9080~	IS$$79745593178160 ~	6314059	1	TT9080
TCD-229-P-CO+	22.90	12.76	4.31	8.45	0.70	22	CO+ ~	0~	0~	~	155~	0~	72550E1361C6C ~	TT9080~	IS$$79745618436126 ~	6314060	1	TT9080
TCD-239-P-CO+	23.90	13.33	4.48	8.85	0.70	23	CO+ ~	0~	0~	~	155~	0~	72550E1361C6C ~	TT9080~	IS$$79745643694096 ~	6314061	1	TT9080
TCD-249-P-CO+	24.90	13.90	4.64	9.26	0.70	24	CO+ ~	0~	0~	~	155~	0~	72550E1361C6C ~	TT9080~	IS$$79745668952070 ~	6314062	1	TT9080
TCD-259-P-CO+	25.90	14.50	4.81	9.69	0.70	25	CO+ ~	0~	0~	~	155~	0~	72550E1361C6C ~	TT9080~	IS$$40164375226369 ~	6314063	1	TT9080
