TaeguTec Cutting Tools - Metal Working Tools - Parting & Grooving -

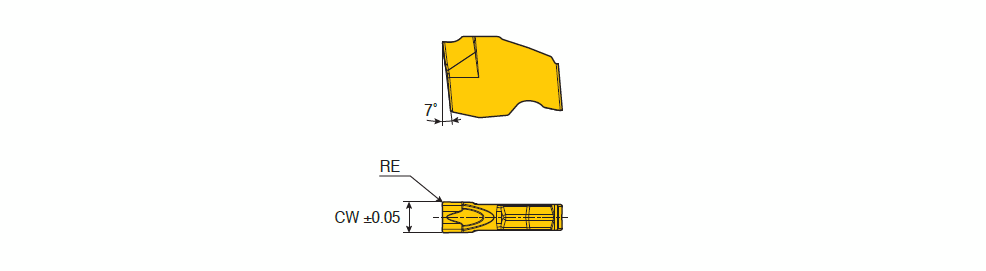

SFJ (Single-ended) : Rigid single-ended inserts with sharp cutting edge for low to medium feed parting & deep grooving of soft materials, thin-walled parts, small diameter parts & tubes

Designation	SSC	CW	RE	ClssID	S1	fg (min)	fg (max)	CB1	W+-toler	R/L	CEDC	COATP	CBMD	GRDMFG	IIC	GICAT	GIREM	giic	GICODE	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
SFJ 2	2	2.00	0.20	71DDA089C8D1E ~	0.00~	0.05	0.15	~	0.00~	N ~	1~	PVD ~	J ~	K10 ~	IS$$468849399523316 ~	6320552		3		TT8020 TT9080 K10
SFJ 3	3	3.00	0.20	71DDA089C8D1E ~	0.00~	0.08	0.20	~	0.00~	N ~	1~	PVD ~	J ~	K10 ~	IS$$468038719116548 ~	6320553		3		TT8020 TT9080 K10

For parting and grooving range, click on "More Info".
