3ED-3XD (Weldon Shank) : Head changeable 3 flute drills with coolant holes for high productivity

Drilling depth: 3xdiameter

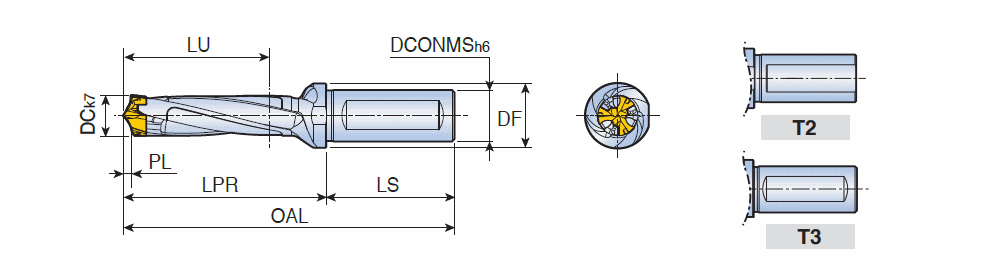

Designation	Tool sty	DCN	DCX	DCONMS	DF	LU	LPR	LS	OAL	PL		SSC	MIID	ClssID	Machines	Zeff	Min Tol	Max Tol	Shank	CICT	DC	ULDR	CCFMS	CCTMS	IIC	LTA	GICAT
3ED 120-124-16T3-3D	HEAD TYPE ~	12.00	12.40	16.00	20.00	40.0	60.70	48.0	108.70	2.74	Y ~	12	3ED-12-P+	72550E1361C6C ~	~	3~	0~	0~	W ~	1~	12.00~	3.00~	11 ~	ZYL ~	IS$$234643444893828 ~	57.96~	6247116
3ED 125-129-16T3-3D	HEAD TYPE ~	12.50	12.90	16.00	20.00	41.5	62.50	48.0	110.50	2.76	Y ~	12	3ED-12-P+	72550E1361C6C ~	~	3~	0~	0~	W ~	1~	12.00~	3.00~	11 ~	ZYL ~	IS$$234203685424486 ~	59.74~	6247118
3ED 130-134-16T3-3D	HEAD TYPE ~	13.00	13.40	16.00	20.00	43.0	64.80	48.0	112.80	2.91	Y ~	13	3ED-13-P+	72550E1361C6C ~	~	3~	0~	0~	W ~	1~	13.00~	3.00~	11 ~	ZYL ~	IS$$234640646494320 ~	61.89~	6247120
3ED 135-139-16T3-3D	HEAD TYPE ~	13.50	13.90	16.00	20.00	44.5	66.60	48.0	114.60	2.93	Y ~	13	3ED-13-P+	72550E1361C6C ~	~	3~	0~	0~	W ~	1~	13.00~	3.00~	11 ~	ZYL ~	IS$$234161230011954 ~	63.67~	6247122
3ED 140-144-16T3-3D	HEAD TYPE ~	14.00	14.40	16.00	20.00	46.0	68.90	48.0	116.90	3.17	Y ~	14	3ED-14-P+	72550E1361C6C ~	~	3~	0~	0~	W ~	1~	14.00~	3.00~	11 ~	ZYL ~	IS$$234134471078334 ~	65.73~	6238926
3ED 145-149-16T3-3D	HEAD TYPE ~	14.50	14.90	16.00	20.00	47.5	70.70	48.0	118.70	3.19	Y ~	14	3ED-14-P+	72550E1361C6C ~	~	3~	0~	0~	W ~	1~	14.00~	3.00~	11 ~	ZYL ~	IS$$233622167784780 ~	67.51~	6238927
3ED 150-159-20T3-3D	HEAD TYPE ~	15.00	15.90	20.00	25.00	49.0	73.90	50.0	123.90	3.31	Y ~	15	3ED-15-P+	72550E1361C6C ~	~	3~	0~	0~	W ~	1~	15.00~	3.00~	11 ~	ZYL ~	IS$$233760402531276 ~	70.59~	6231965
3ED 160-169-20T3-3D	HEAD TYPE ~	16.00	16.90	20.00	25.00	52.0	79.00	50.0	129.00	3.70	Y ~	16	3ED-16-P+	72550E1361C6C ~	~	3~	0~	0~	W ~	1~	16.00~	3.00~	11 ~	ZYL ~	IS$$236602130494884 ~	75.30~	6334321
3ED 170-179-20T3-3D	HEAD TYPE ~	17.00	17.90	20.00	25.00	55.0	84.00	50.0	134.00	3.88	Y ~	17	3ED-17-P+	72550E1361C6C ~	~	3~	0~	0~	W ~	1~	17.00~	3.00~	11 ~	ZYL ~	IS$$236169604023192 ~	80.12~	6334327
3ED 180-189-25T2-3D	HEAD TYPE ~	18.00	18.90	25.00	32.00	58.0	90.10	56.0	146.10	4.07	Y ~	18	3ED-18-P+	72550E1361C6C ~	~	3~	0~	0~	W ~	1~	18.00~	3.00~	11 ~	ZYL ~	IS$$236169729617726 ~	86.03~	6334328
3ED 190-199-25T2-3D	HEAD TYPE ~	19.00	19.90	25.00	32.00	61.0	94.70	56.0	150.70	4.26	Y ~	19	3ED-19-P+	72550E1361C6C ~	~	3~	0~	0~	W ~	1~	19.00~	3.00~	11 ~	ZYL ~	IS$$236169855212292 ~	90.44~	6334329
3ED 200-209-25T2-3D	HEAD TYPE ~	20.00	20.90	25.00	32.00	64.0	99.30	56.0	155.30	4.44	Y ~	20	3ED-20-P+	72550E1361C6C ~	~	3~	0~	0~	W ~	1~	20.00~	3.00~	11 ~	ZYL ~	IS$$234799505202015 ~	94.86~	6334330
3ED 210-219-25T2-3D	HEAD TYPE ~	21.00	21.90	25.00	32.00	67.0	103.80	56.0	159.80	4.62	Y ~	21	3ED-21-P+	72550E1361C6C ~	~	3~	0~	0~	W ~	1~	21.00~	3.00~	11 ~	ZYL ~	IS$$234152413353063 ~	99.18~	6238917
3ED 220-229-25T2-3D	HEAD TYPE ~	22.00	22.90	25.00	32.00	70.0	108.40	56.0	164.40	4.78	Y ~	22	3ED-22-P+	72550E1361C6C ~	~	3~	0~	0~	W ~	1~	22.00~	3.00~	11 ~	ZYL ~	IS$$234010725217766 ~	103.62~	6236102
3ED 230-239-32T2-3D	HEAD TYPE ~	23.00	23.90	32.00	42.00	73.0	112.80	60.0	172.80	5.02	Y ~	23	3ED-23-P+	72550E1361C6C ~	~	3~	0~	0~	W ~	1~	23.00~	3.00~	11 ~	ZYL ~	IS$$234152632007520 ~	107.78~	6238920
3ED 240-249-32T2-3D	HEAD TYPE ~	24.00	24.90	32.00	42.00	76.0	117.40	60.0	177.40	5.18	Y ~	24	3ED-24-P+	72550E1361C6C ~	~	3~	0~	0~	W ~	1~	24.00~	3.00~	11 ~	ZYL ~	IS$$234152769458652 ~	112.22~	6238922
3ED 250-259-32T2-3D	HEAD TYPE ~	25.00	25.90	32.00	42.00	79.0	122.00	60.0	182.00	5.29	Y ~	25	3ED-25-P+	72550E1361C6C ~	~	3~	0~	0~	W ~	1~	25.00~	3.00~	11 ~	ZYL ~	IS$$234134683012820 ~	116.71~	6238924
