TaeguTec Cutting Tools - Metal Working Tools - Milling & Solid End mills -

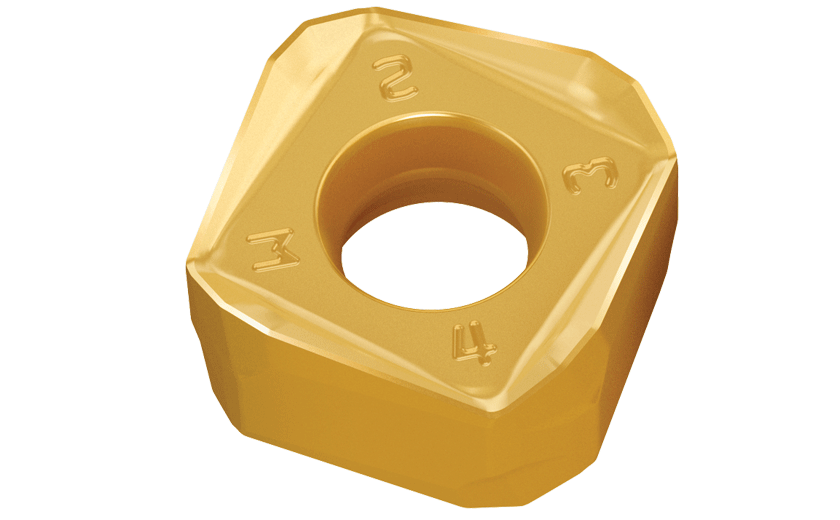

SQKU 11 ANR-M : Double-sided Square inserts with 8 cutting edges for roughing (45°) and high feed (20°) face milling and high feed machining.

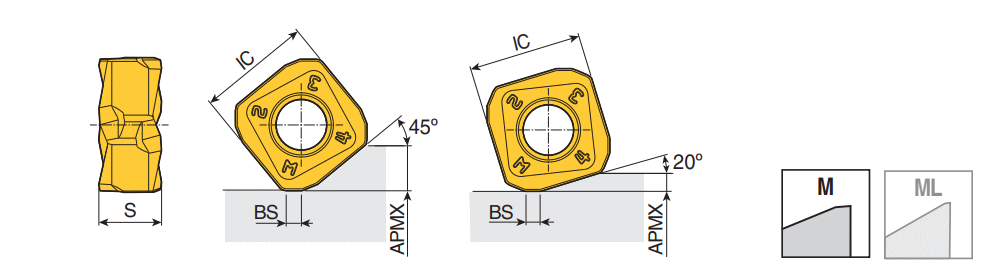

Designation	IC	S	APMX	BS	S1	ap (min)	ap (max)	fz (max)	fz (min)	SF	Insert	CE	SC	ClssID		CB	CEDC	GRDMFG	IIC	GICAT	GIREM	giic	GICODE	Tough ‹————› Hard Grade & Vc Click on grade for cutting speed value
SQKU 1105 ANR-M	11.20	6.30	4.20	1.90	11.00~	1.00	4.00	0.250	0.100	~	C8M-SQ11 ~	8~	S ~	71DD68D829217 ~	U65 ~	M ~	8~	8525B ~	IS$$701109547530651 ~	6236177		3		TT8525B TT9080 TT6080

For recommended machining condition, please click on "More Info"
Feed & Depth of cut data for 45° facing.
